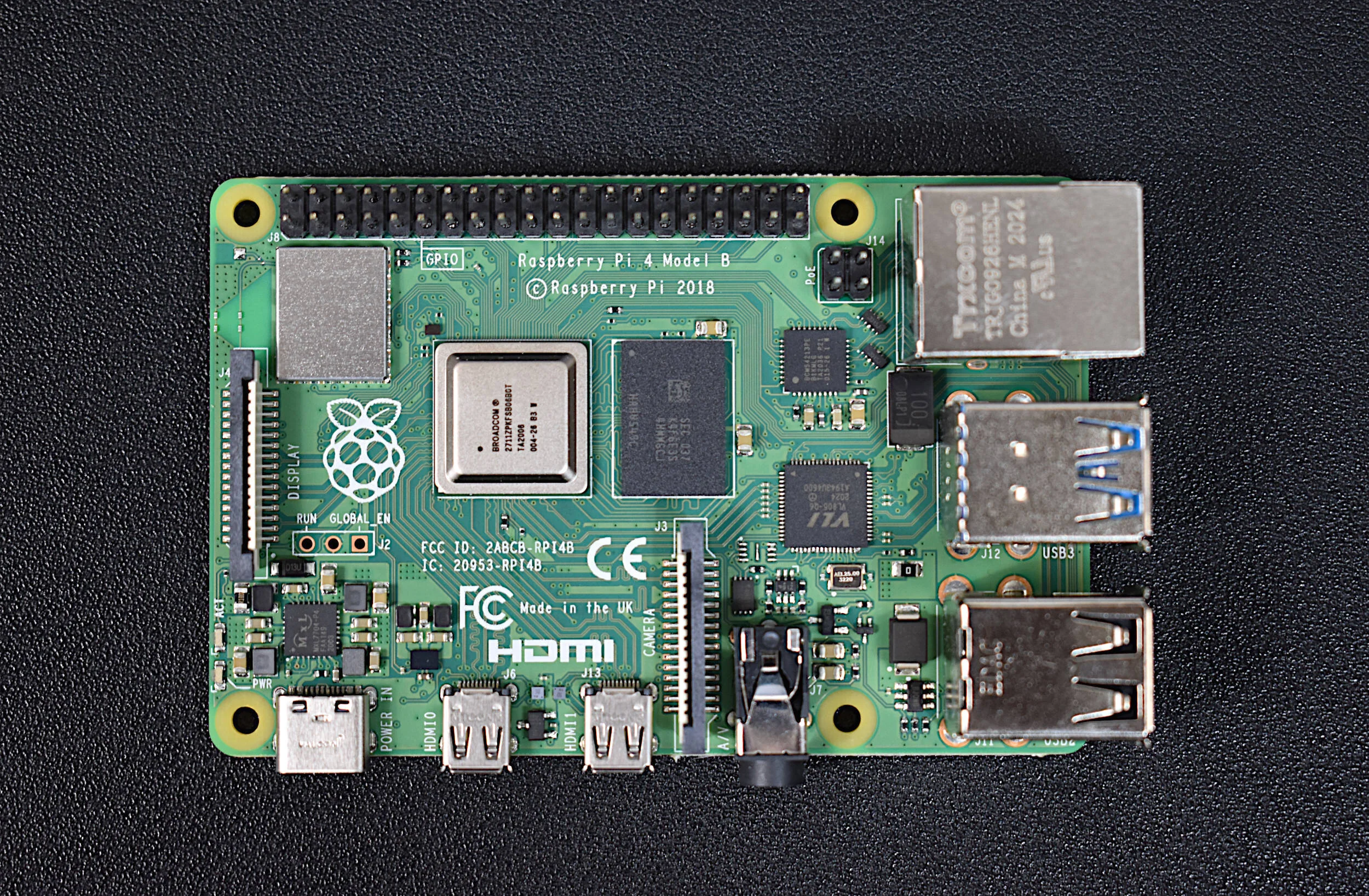

The Raspberry Pi 4 Computer, Model B is the latest in the series of single-board computers (SBC) produced by the Raspberry Pi Foundation. The RPi 4 increased its processor speed, its GPU performance, memory (1GB, 2GB, 4B, 8GB options), and connectivity. The Raspberry Pi 4 computer continues to be an essential tool in the maker, programmer, and engineer communities. The Raspberry Pi 4 is capable of interfacing with a wide range of sensors, motors, actuators, and devices. The RPi 4 has the standard 40-pin header with general purpose input/outputs (GPIOs), Bluetooth and WiFi capabilities, HDMI output display abilities, and much more! Our site contains a variety of different tutorials in the categories of Python programming, data acquisition and analysis, motor control, internet of things (IoT), engineering, among others.

Included with the Raspberry Pi 4 Model B Computer:

• 1x Raspberry Pi 4 Model B Computer

Features of the Raspberry Pi 4 Model B Computer:

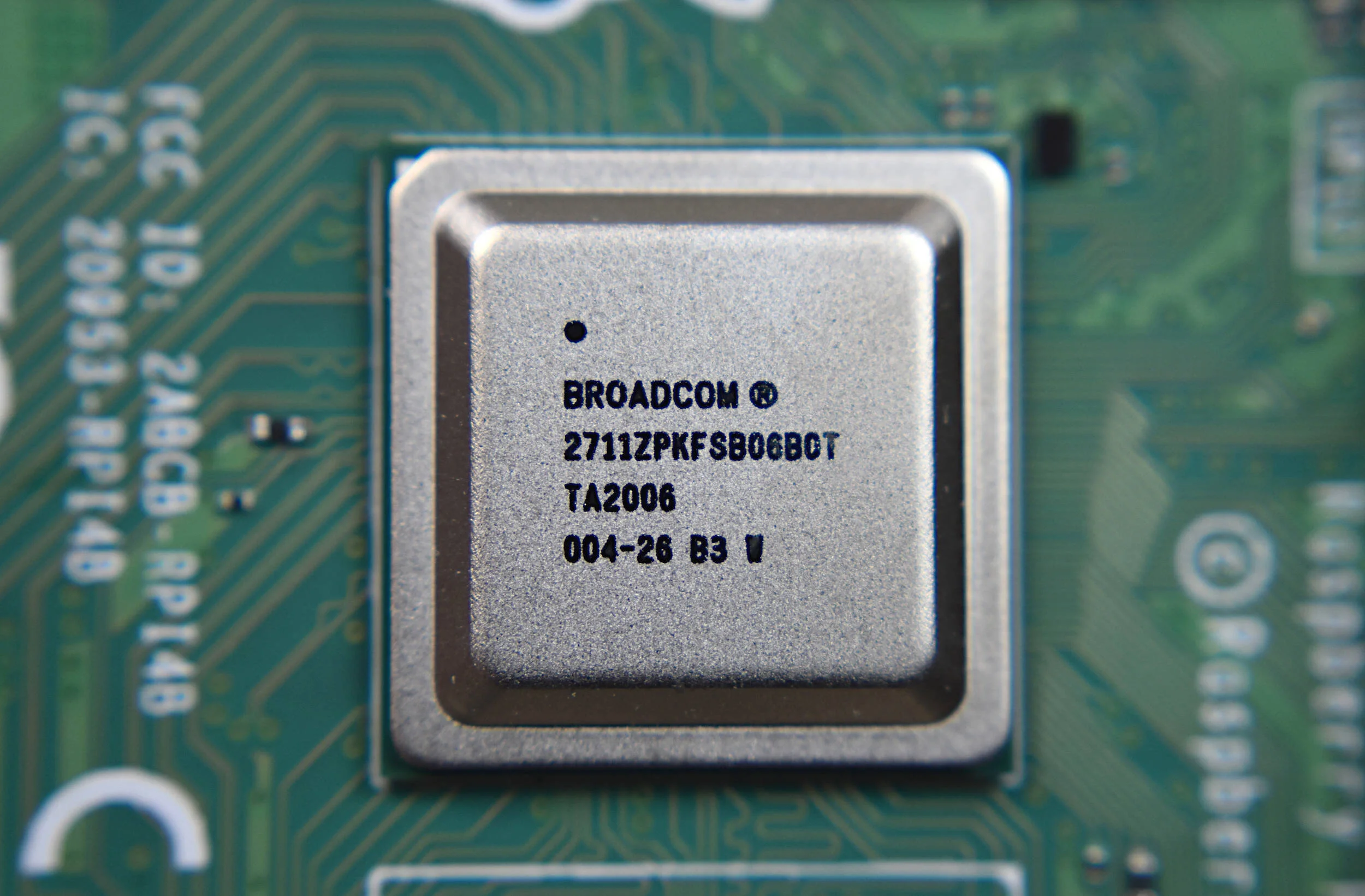

• Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

• LPDDR4-3200 SDRAM (2GB, 4GB, 8GB depending on the model)

• 2.4 GHz and 5.0 GHz WiFi, Bluetooth 5.0, Bluetooth Low Energy (BLE)

• Gigabit Ethernet

• 2x USB 3.0 ports; 2x USB 2.0 ports

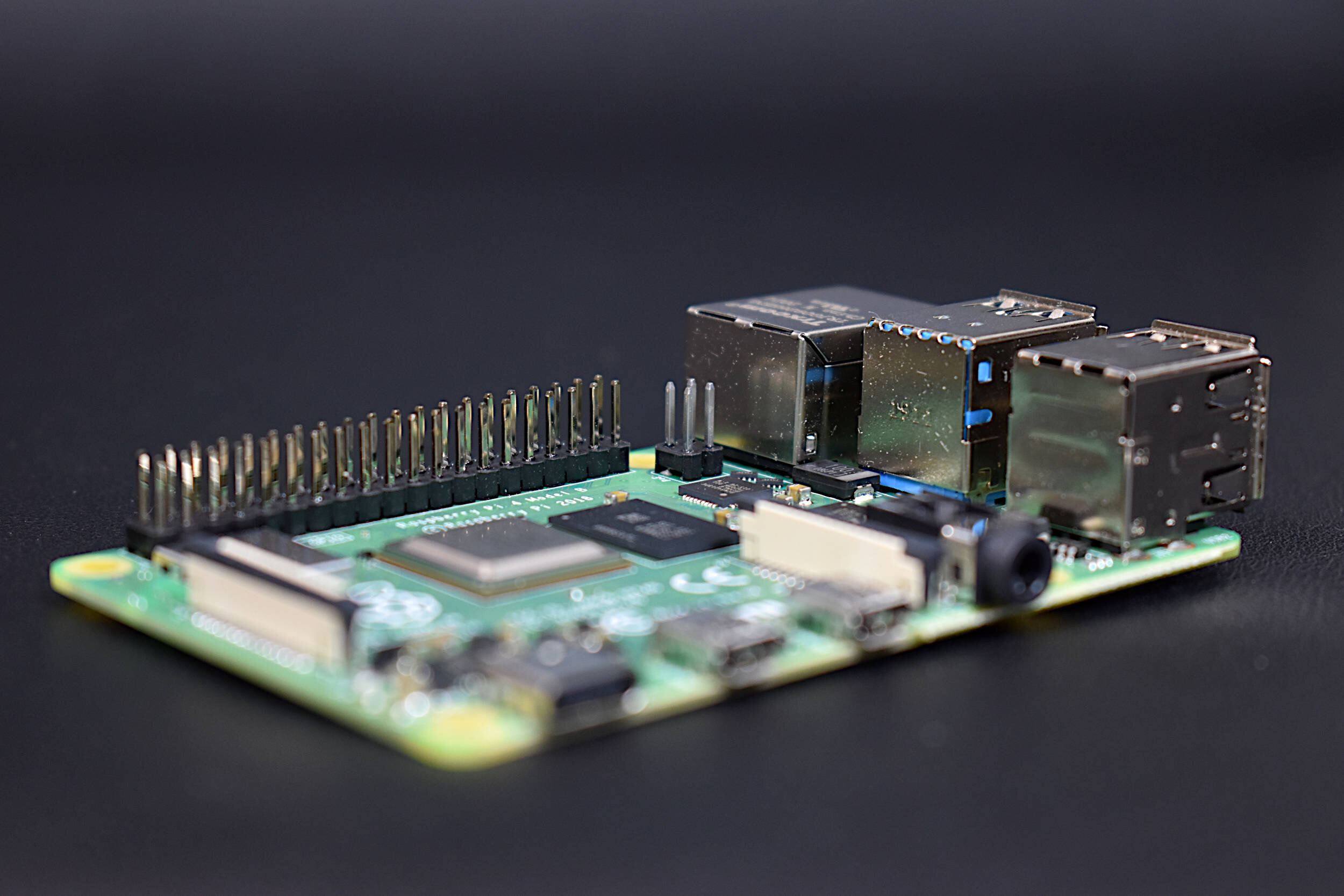

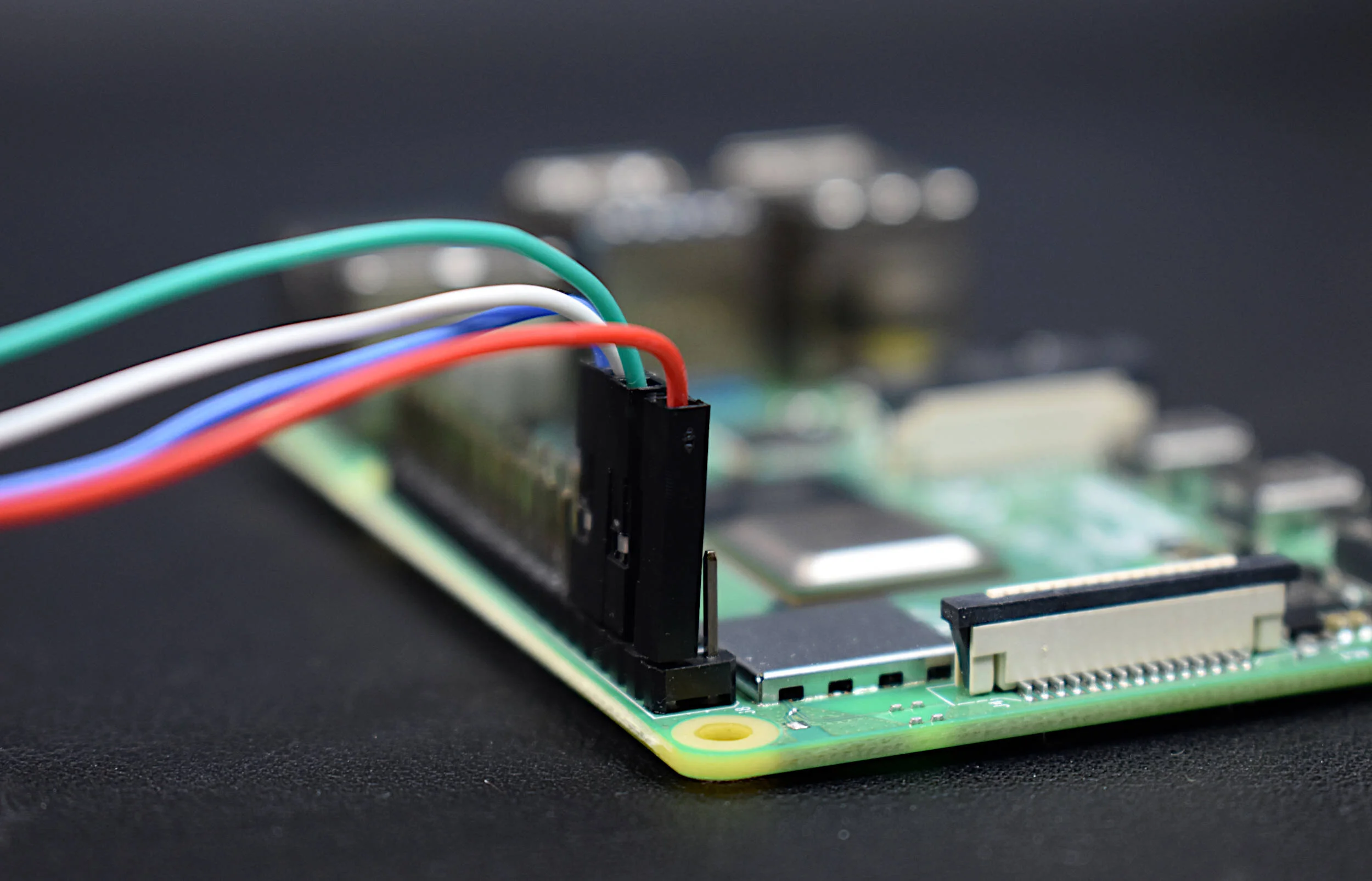

• Raspberry Pi standard 40-pin GPIO header (fully backwards compatible with previous boards)

• 2x micro-HDMI ports (up to 4K @60fps supported)

• 2-lane MIPI DSI display port, 2-lane MIPI CSI camera port

• 4-pole stereo audio and composite video port

• H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)

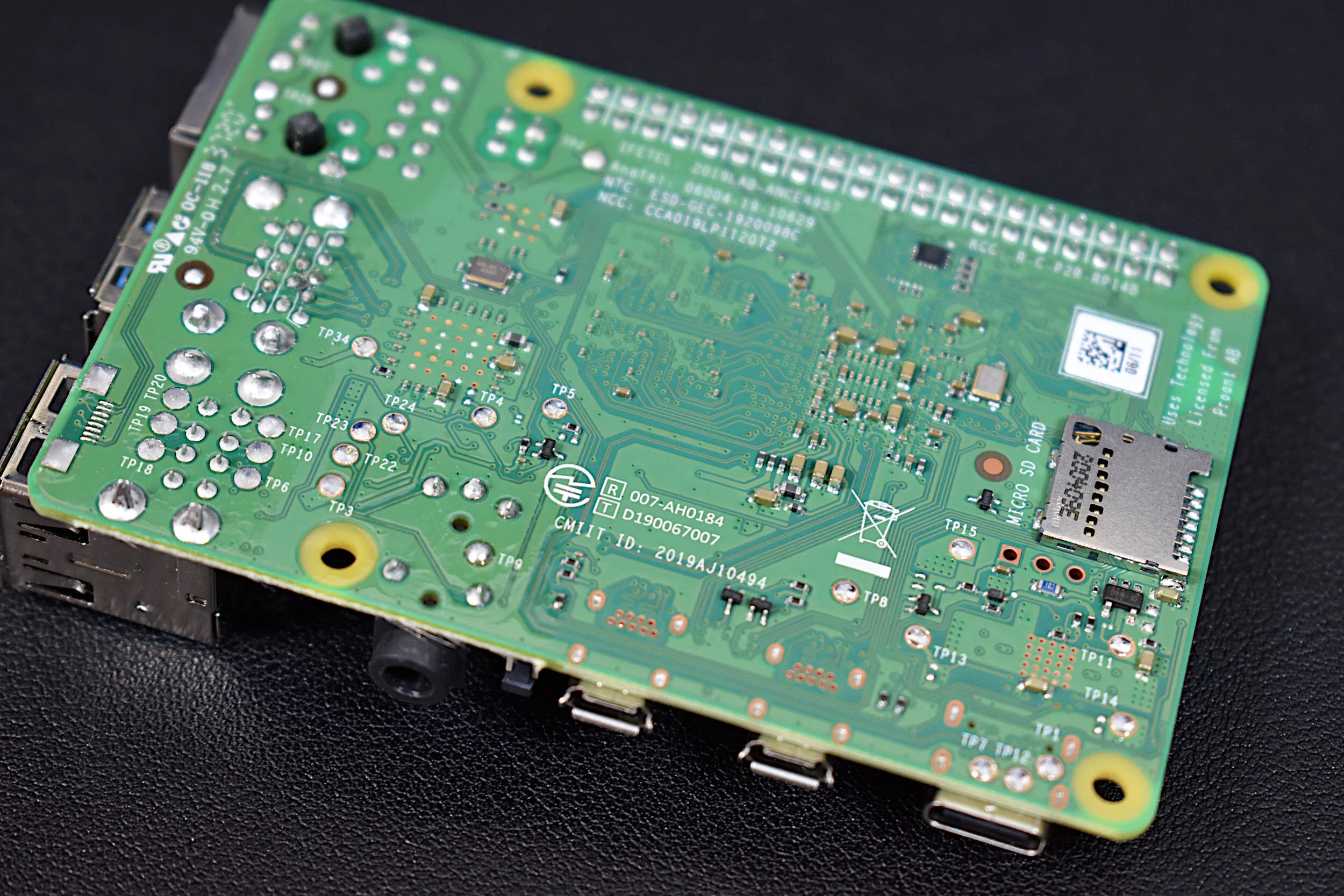

• Micro-SD card slot for loading operating system and data storage

• 5V DC via USB-C connector, 5V DC via GPIO header (3A Recommended Supply)

• Operating Temperature (Ambient): 0°C – 50°C

• Raspberry Pi Peripherals:

  • 6x UART, 6x I2C, 5x SPI, 1x SDIO, 1x DPI, 1x PCM, 2x PWM Channels, 3x GPCLK
