QuadMic 4-Microphone Array for Raspberry Pi
QuadMic 4-Microphone Array for Raspberry Pi

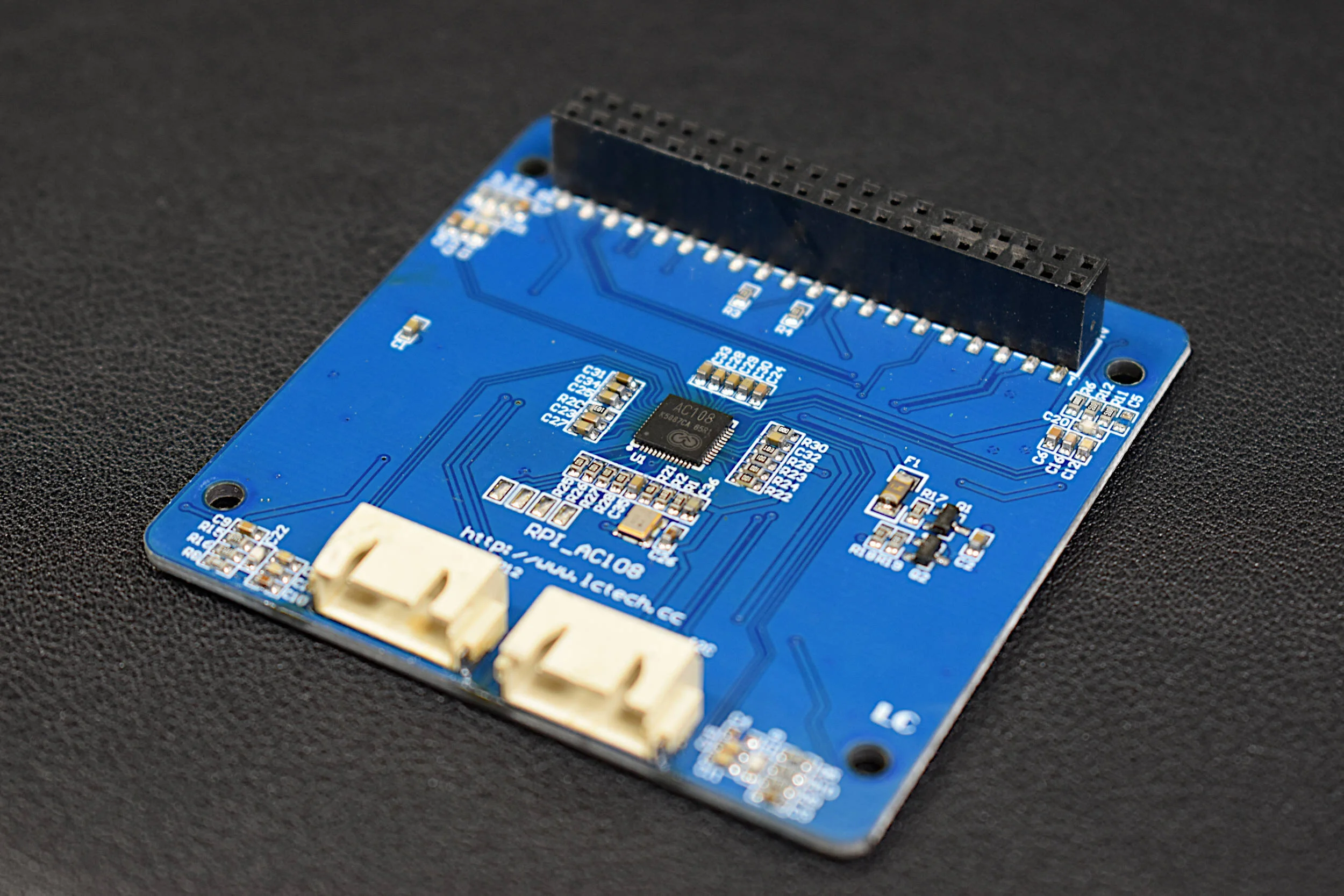

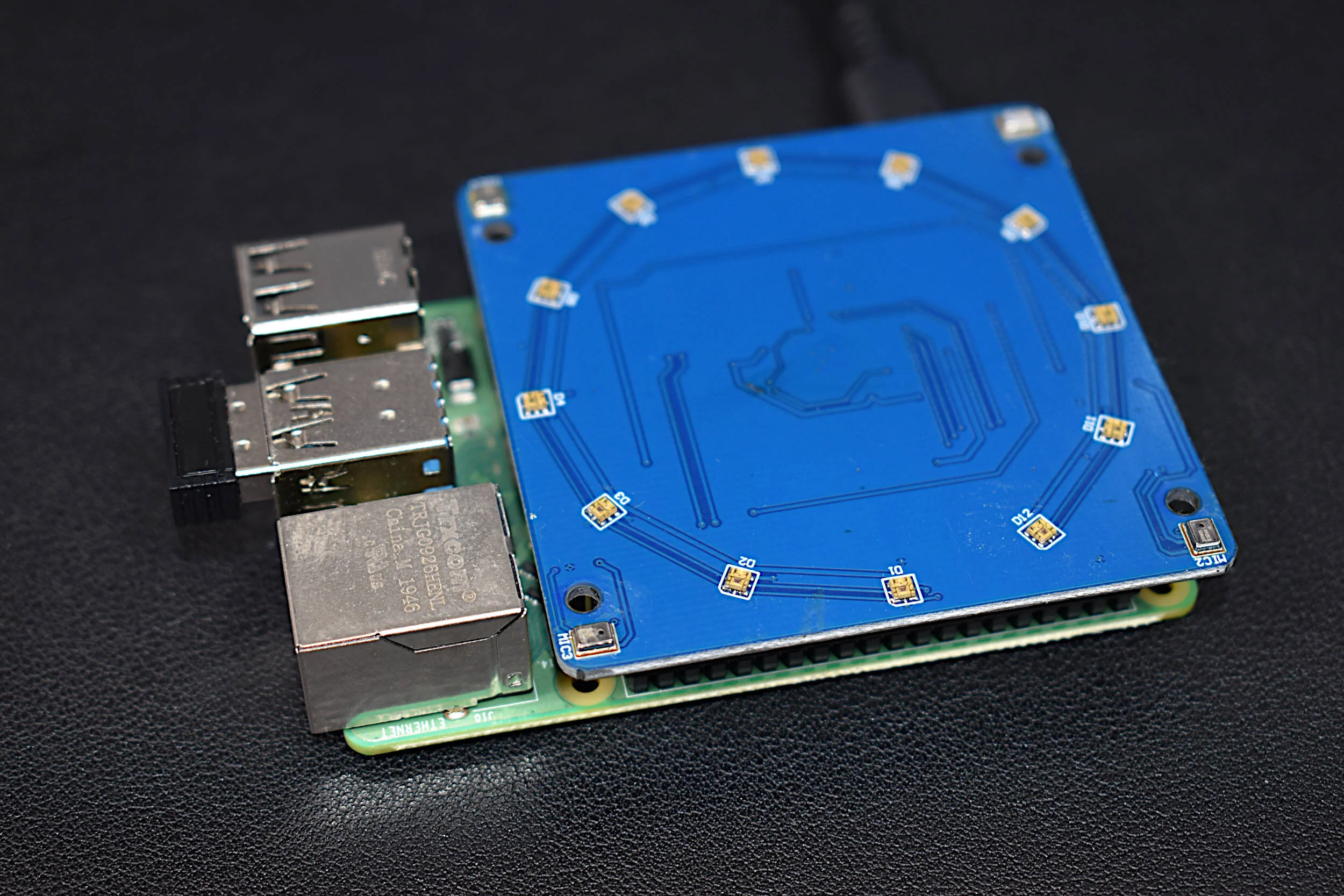

The QuadMic Array is a 4-microphone array based around the AC108 quad-channel analog-to-digital converter (ADC) with Inter-IC Sound (I2S) audio output capable of interfacing with the Raspberry Pi. The QuadMic can be used for applications in voice detection and recognition, acoustic localization, noise control, and other applications in audio and acoustic analysis. The QuadMic can be connected to the header of a Raspberry Pi computer and used to record simultaneous audio data from all four of its microphones. Some applications of the QuadMic are: characterizing noise sources, room and spatial geometries, and other aspects of acoustic systems.
Included in the QuadMic 4-Microphone Array Package:
1x QuadMic 4-Microphone Array

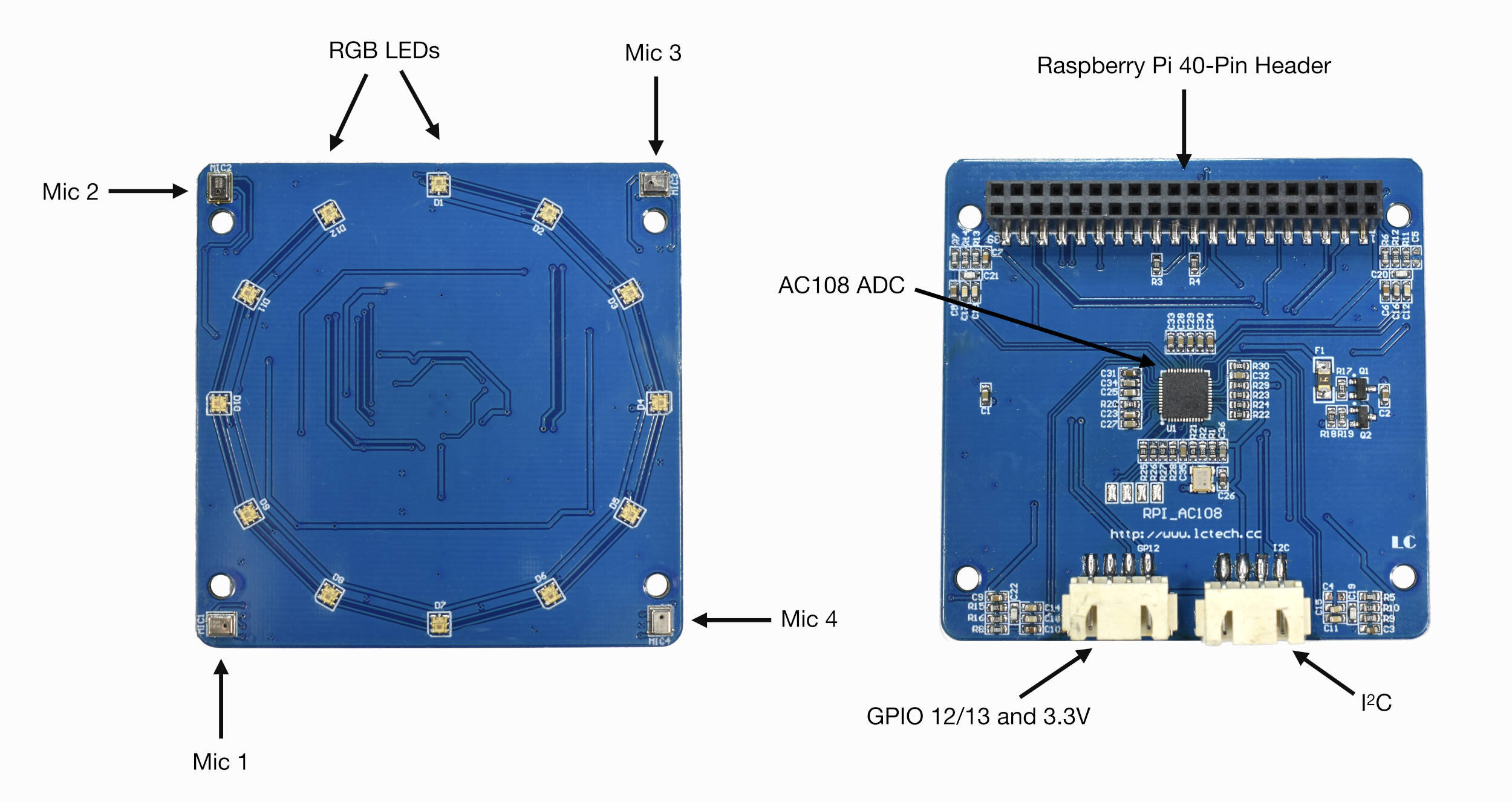

Features of the QuadMic 4-Microphone Array:

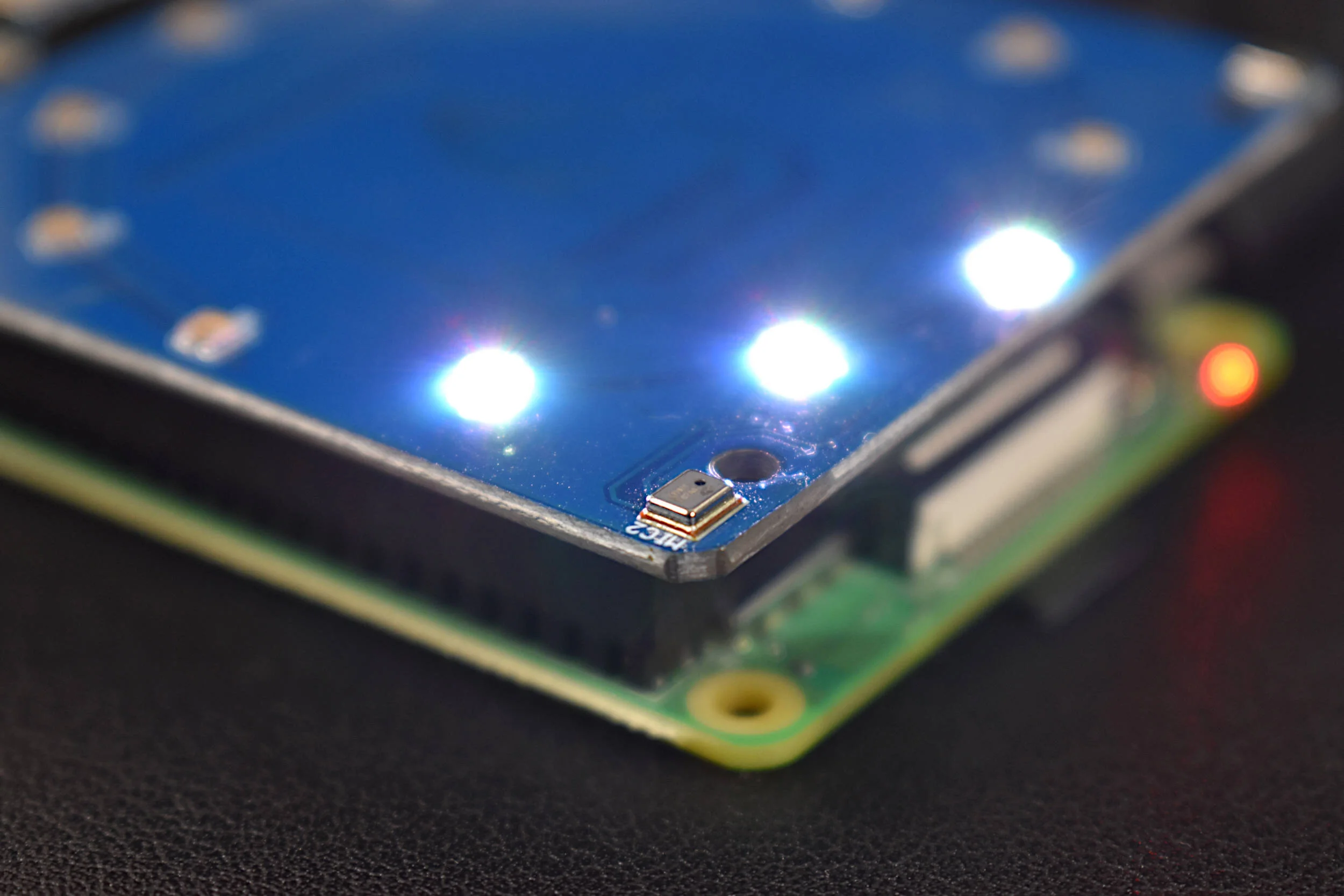

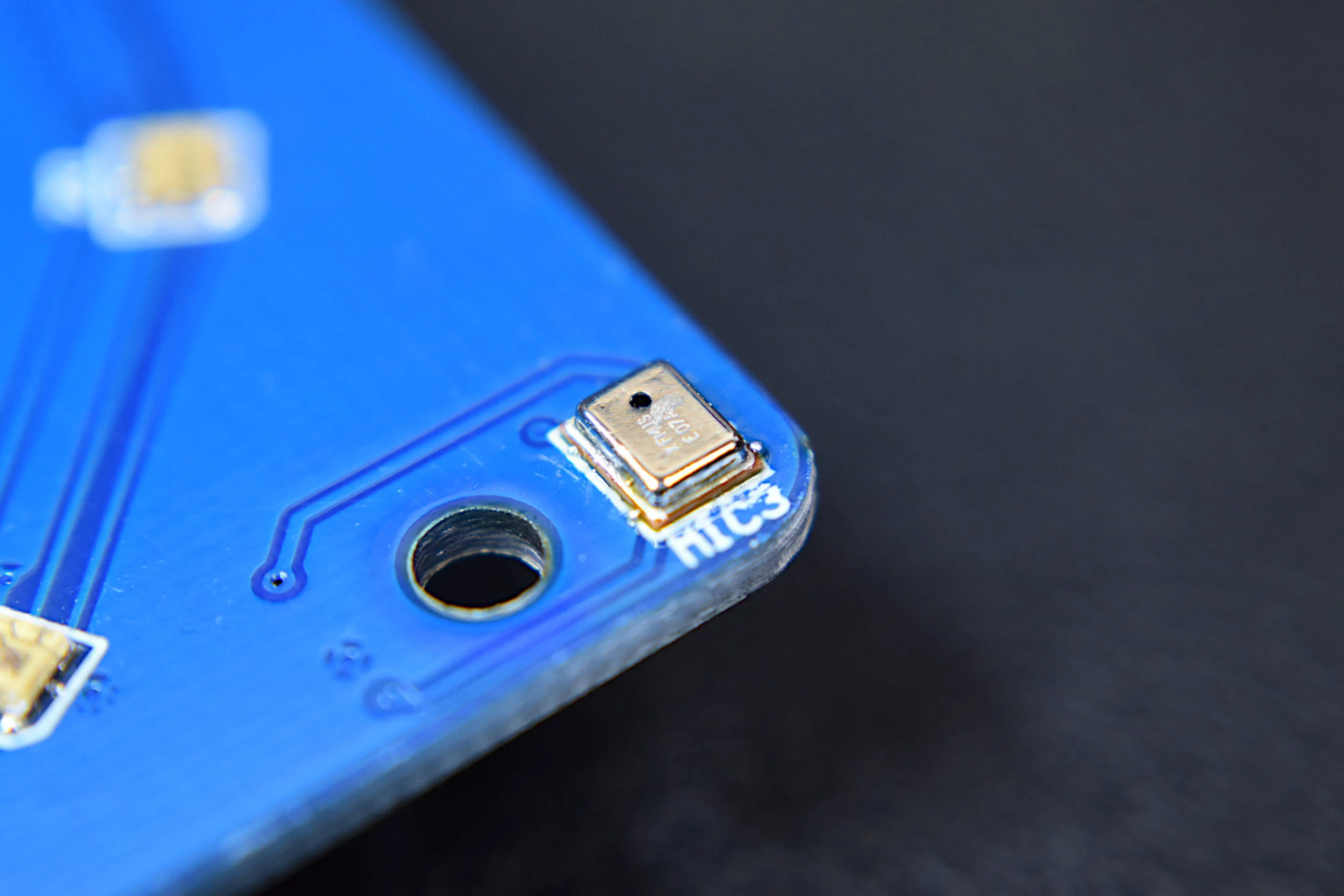

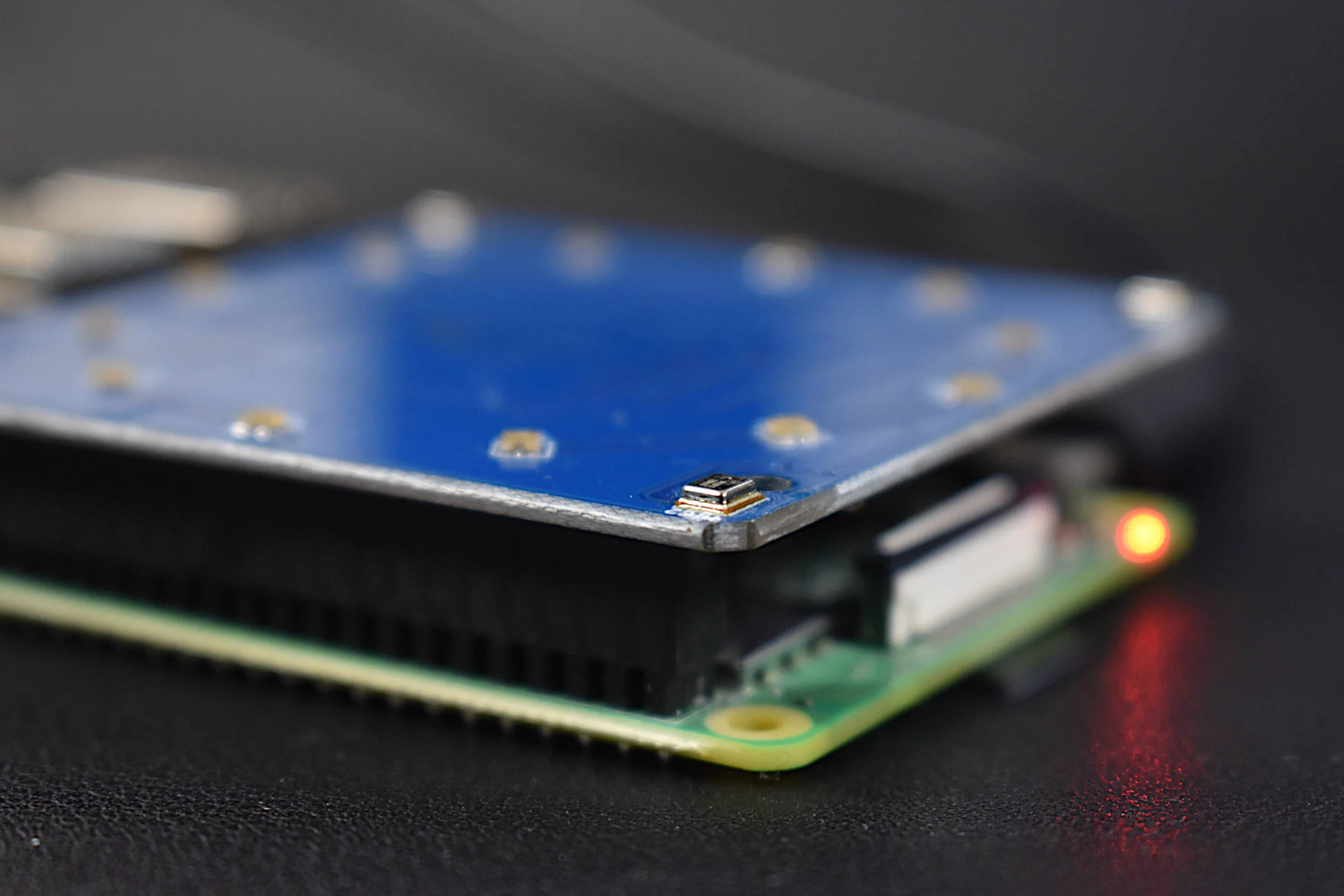

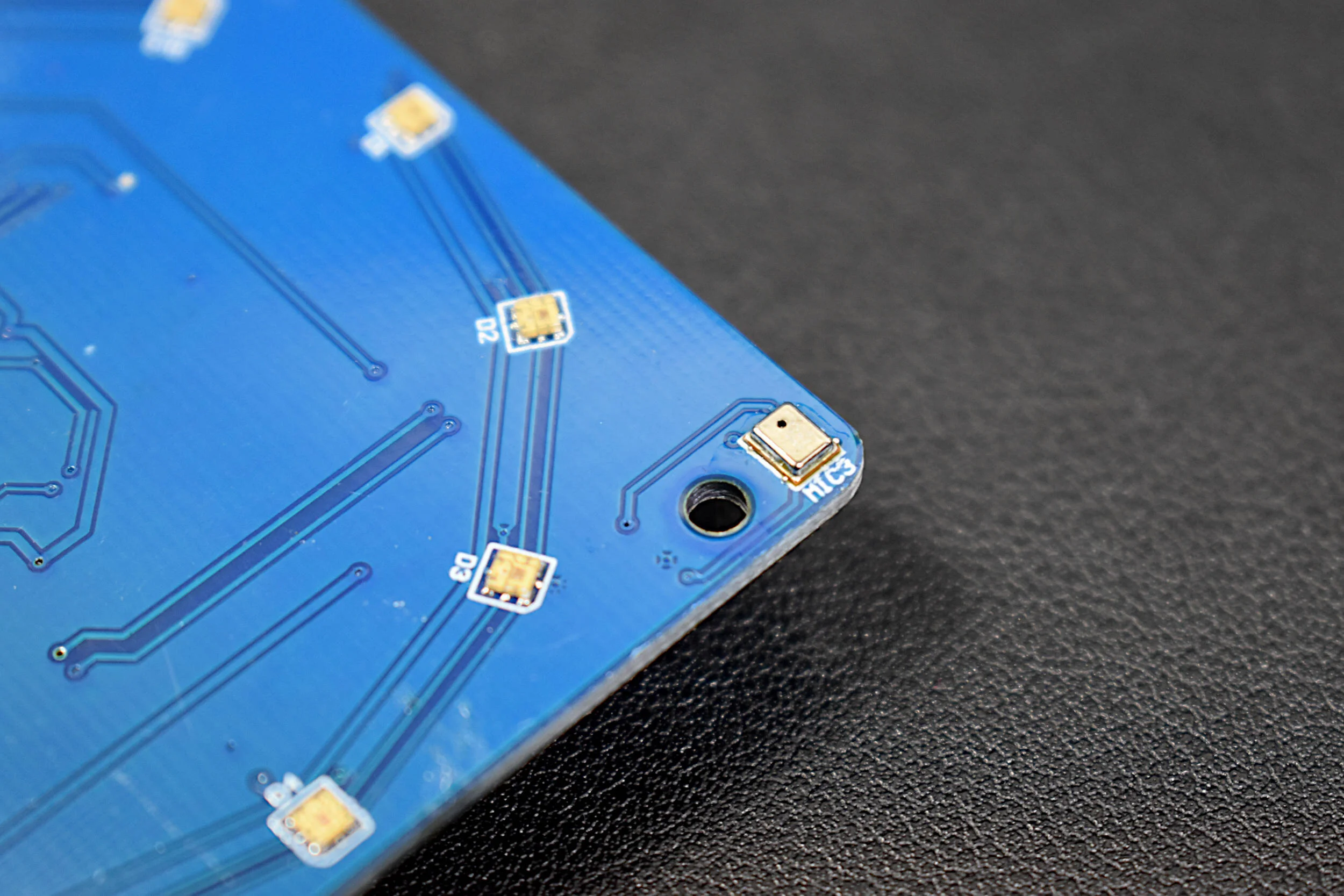

Four SPU0414HR5H MEMS Microphones
100Hz - 10kHZ Flat (4dB) Frequency Response
16kHz Sample Rate for Each Microphone
I2S Audio Protocol
I2C Output Connector
GPIO 12/13 Available via Output Connector

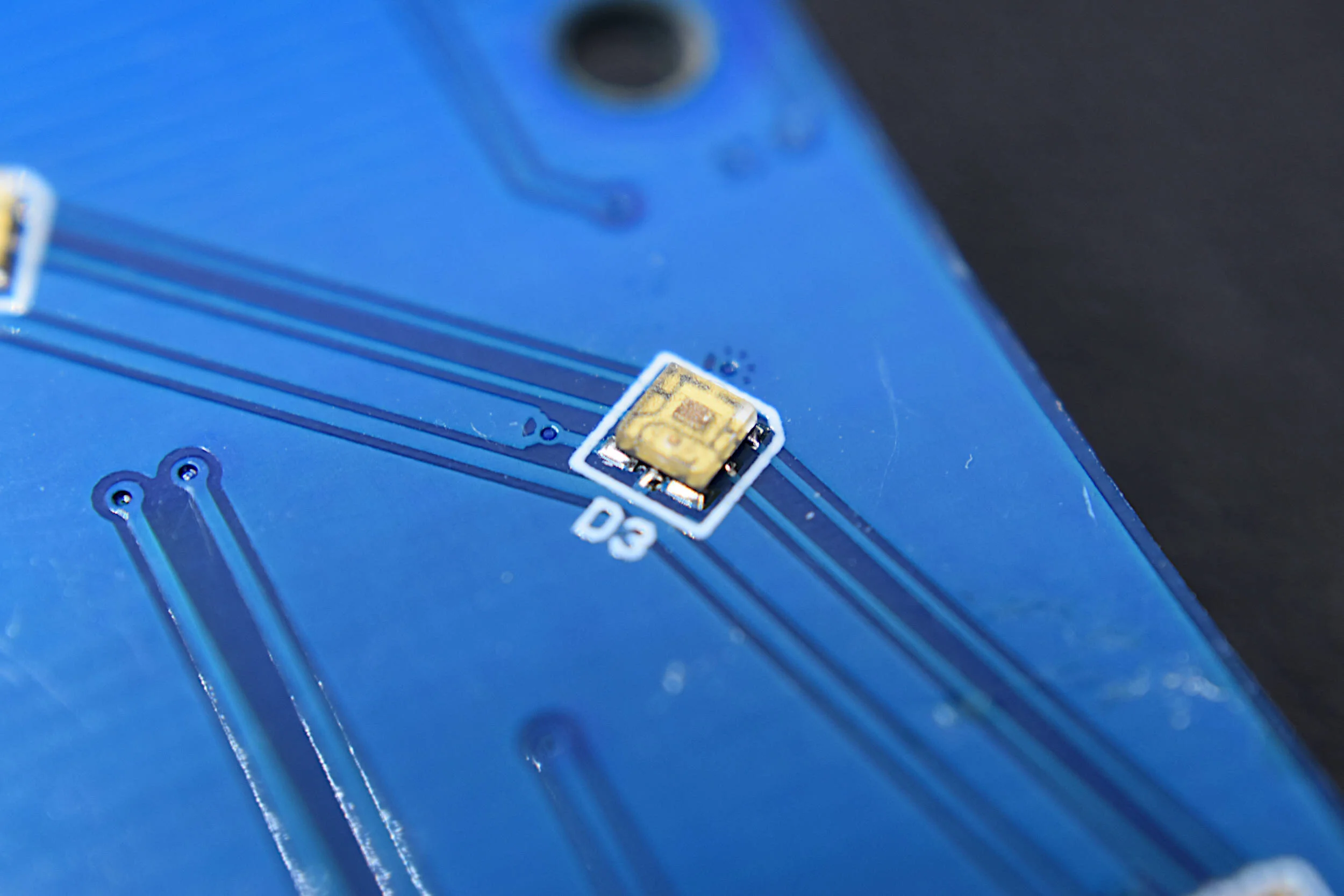

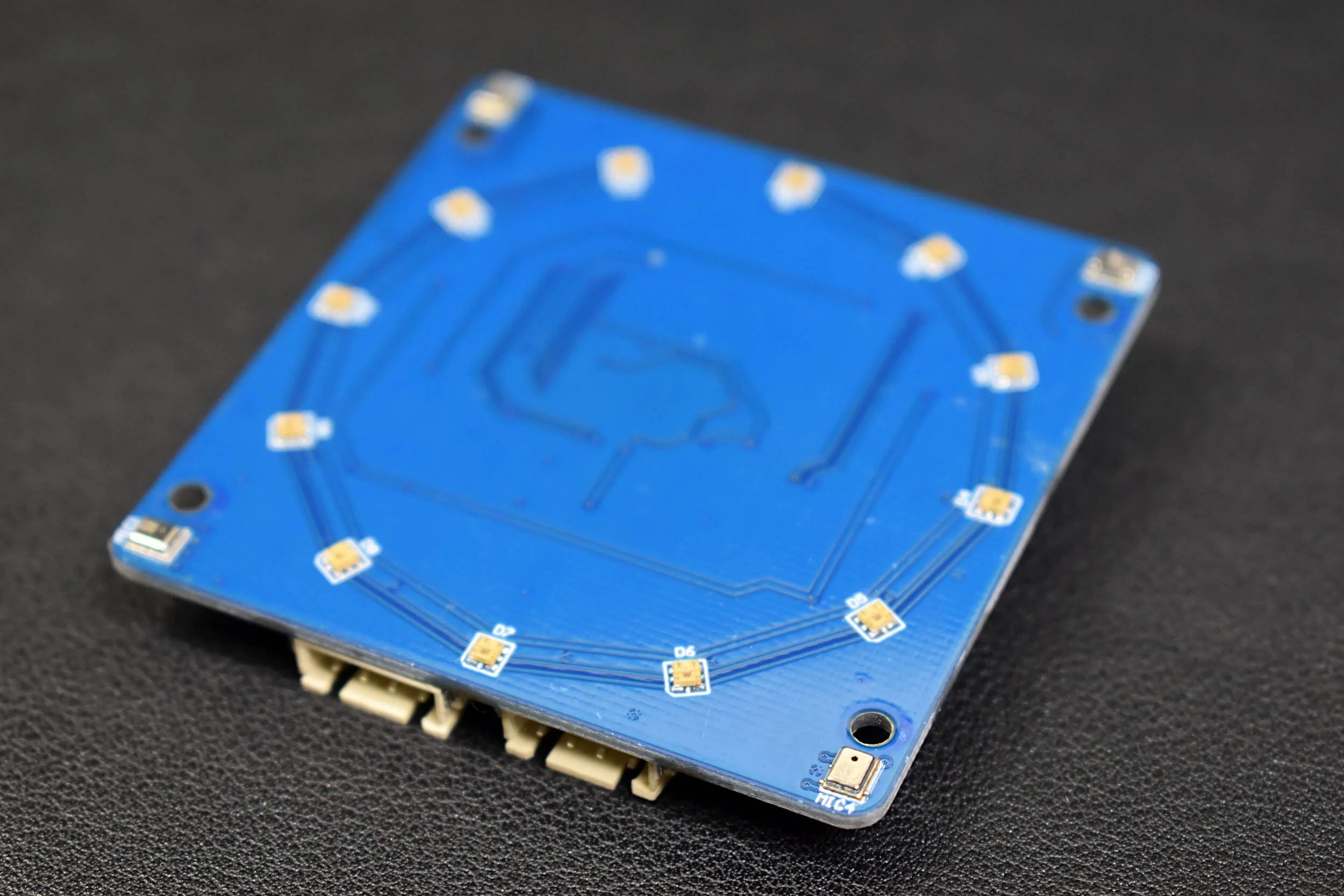

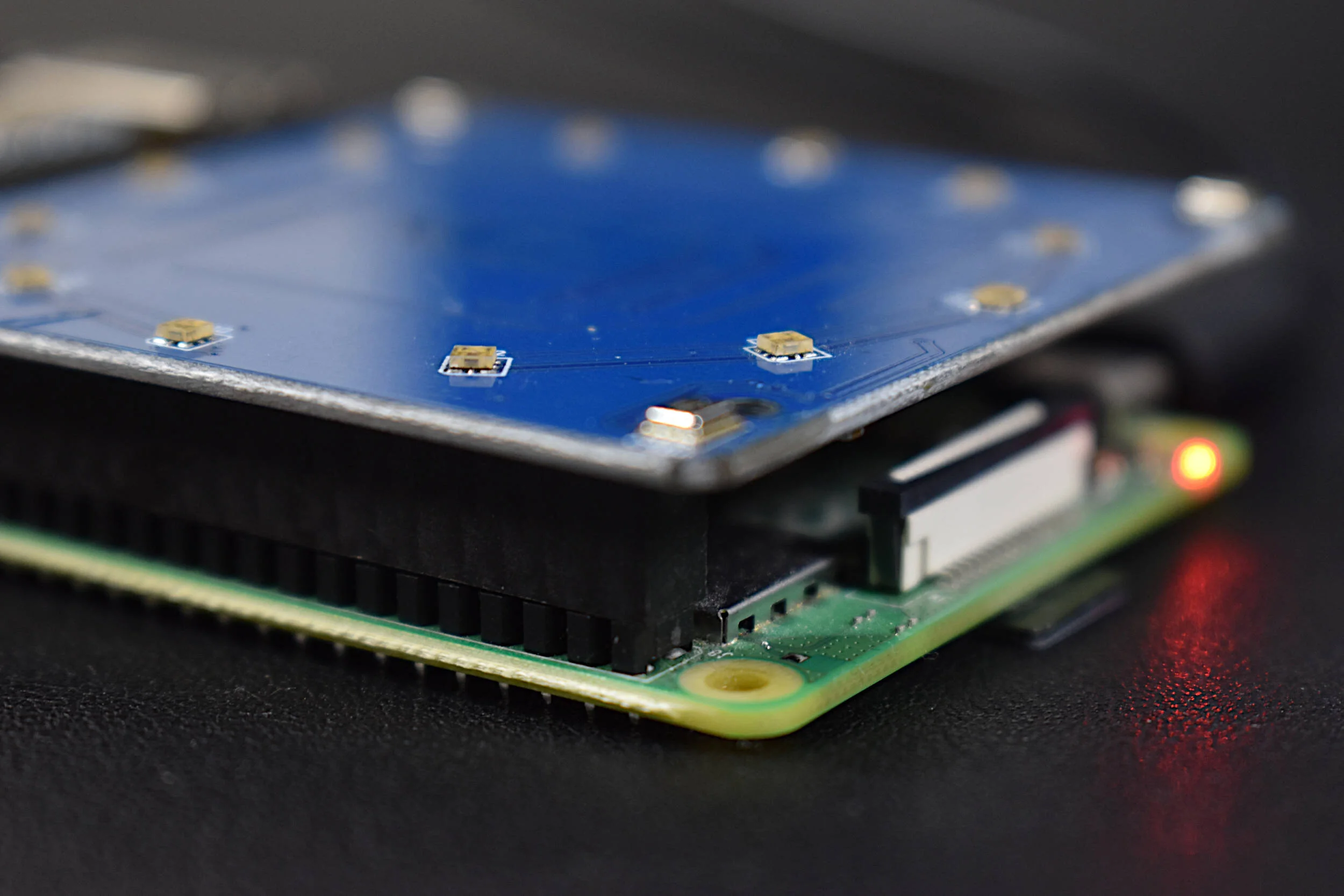

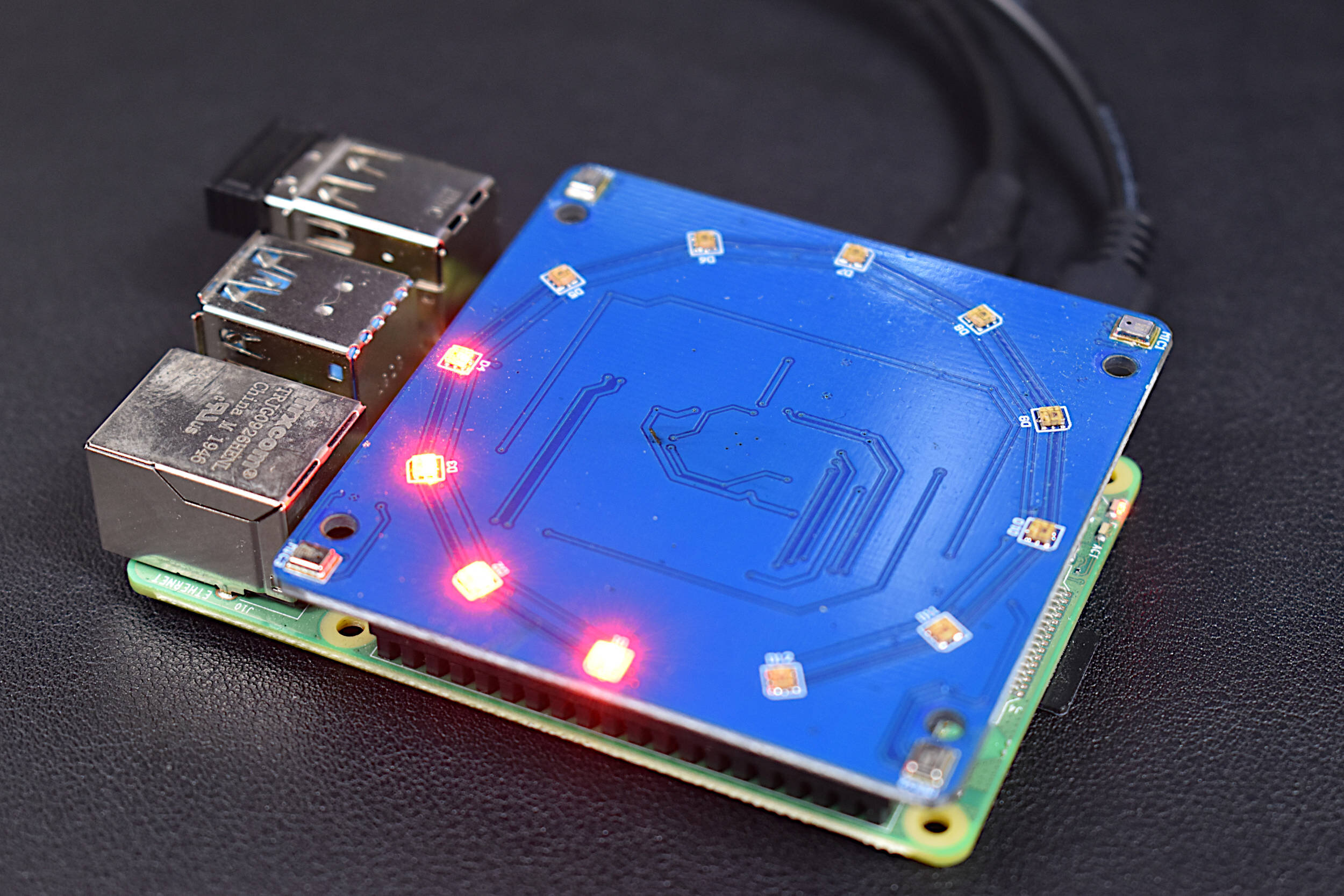

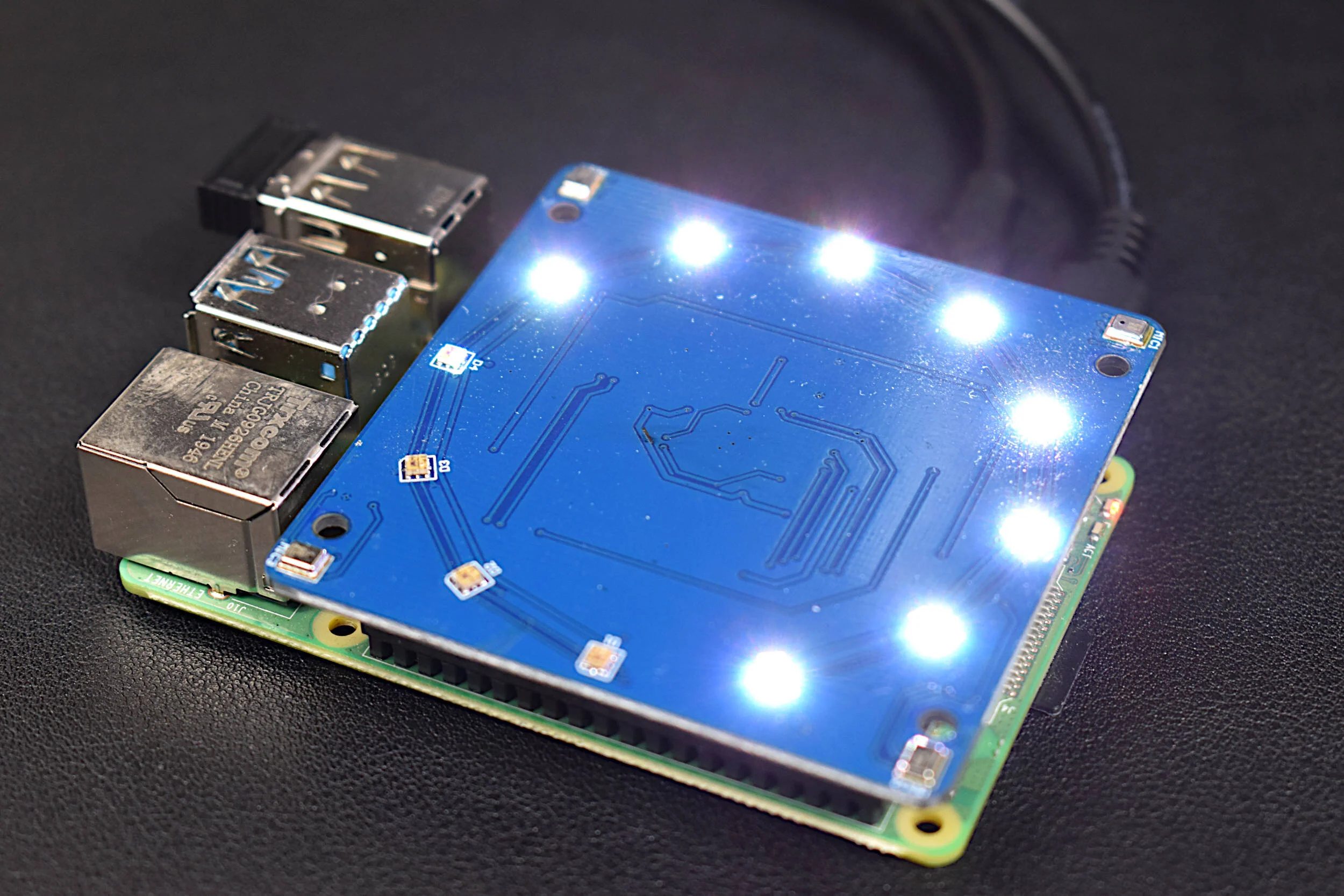

12 Addressable RGB LEDs via SPI

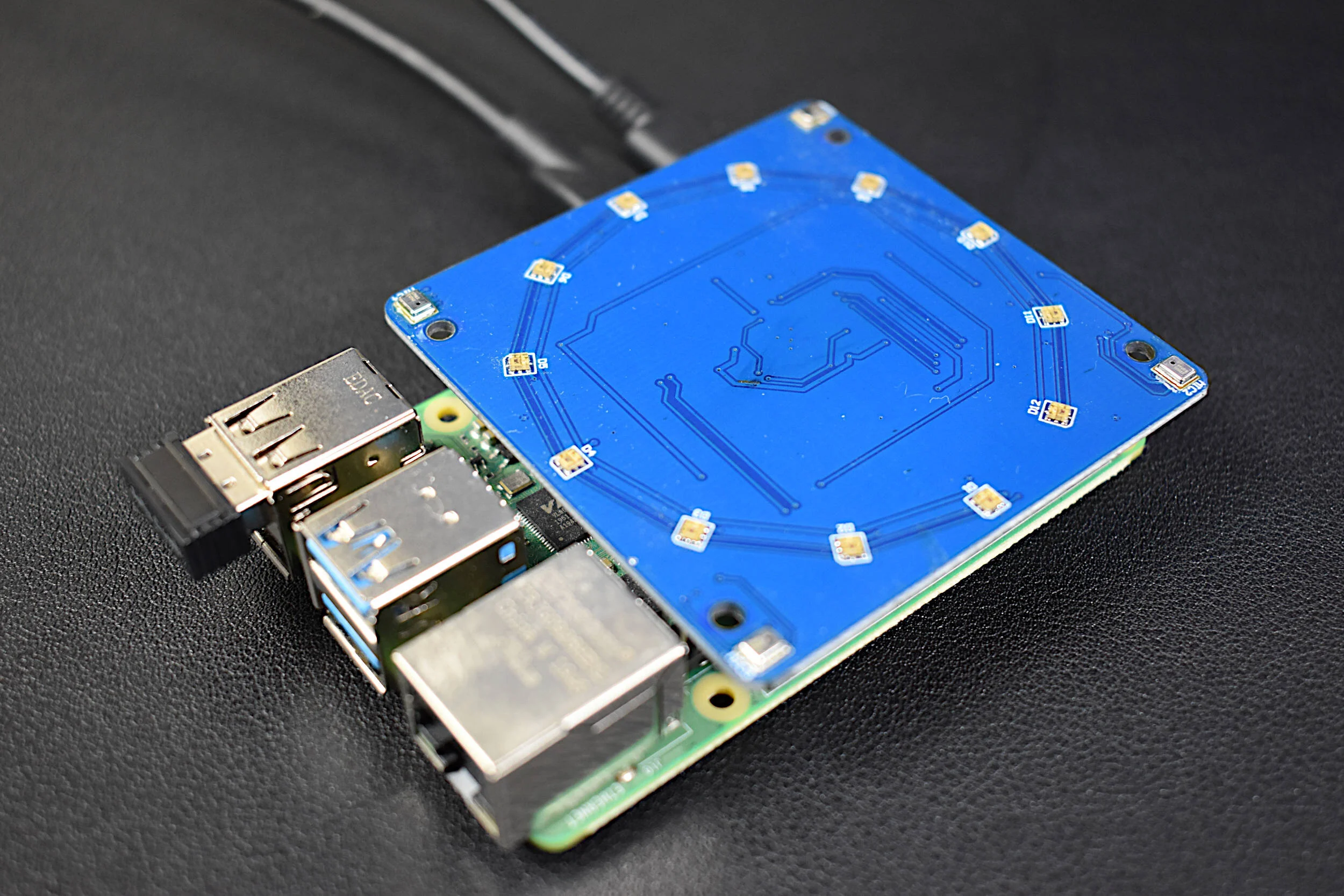

Compatible with Raspberry Pi
Electronic Wiring Diagram can be found here
Read about the AC108 Analog-to-Digital Converter here
