Raspberry Pi Pico Starter Kit

Raspberry Pi Pico Starter Kit

$15.00

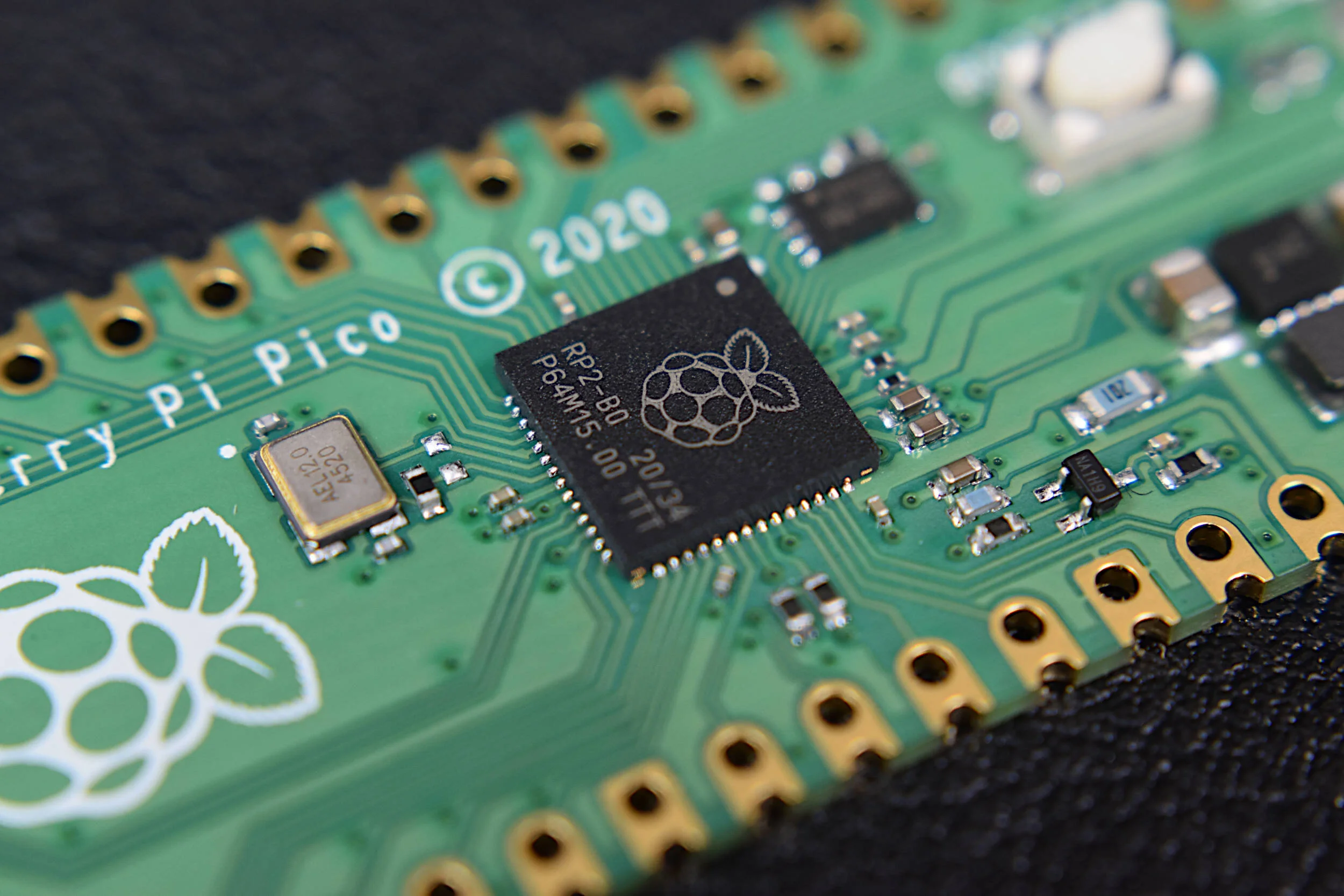

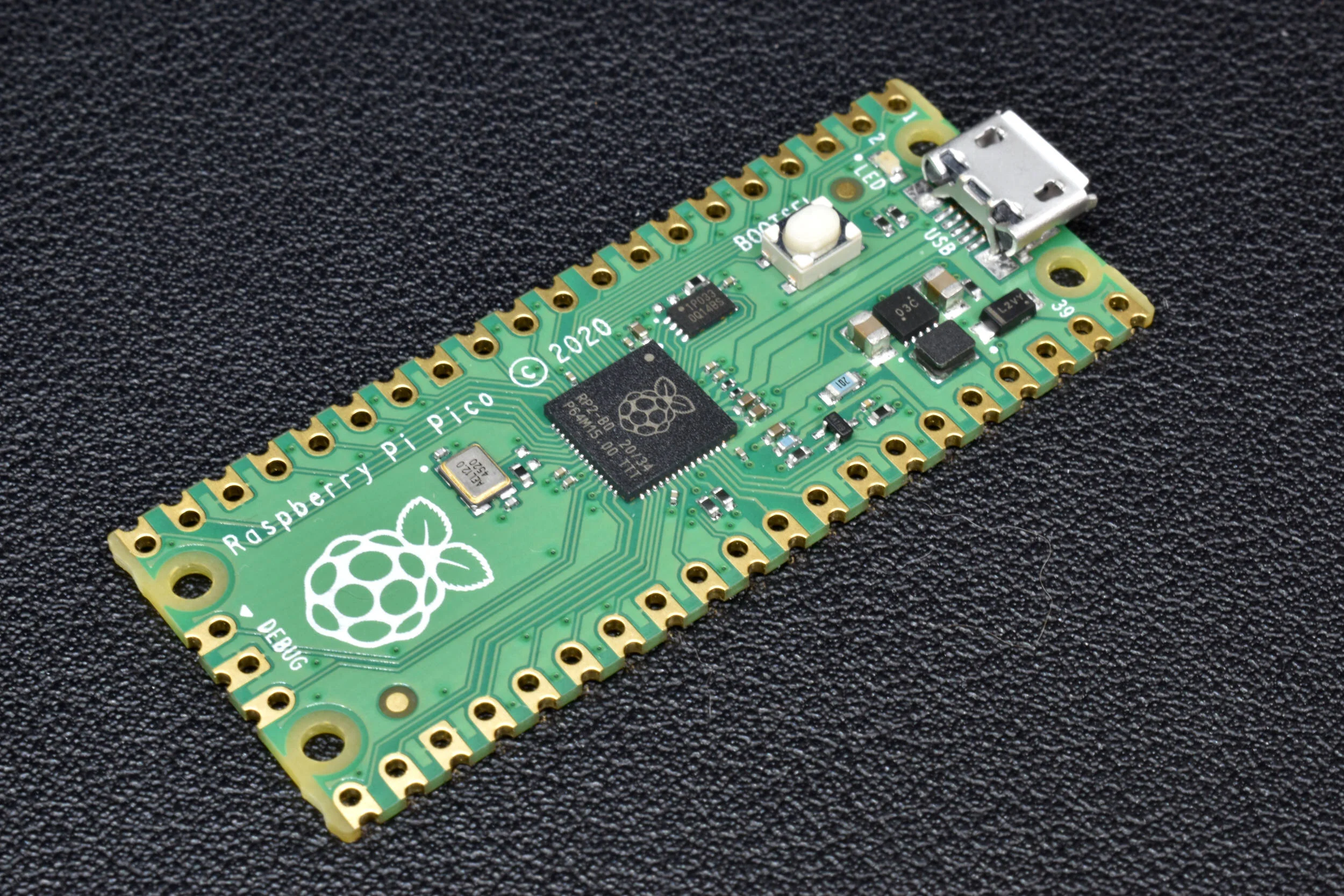

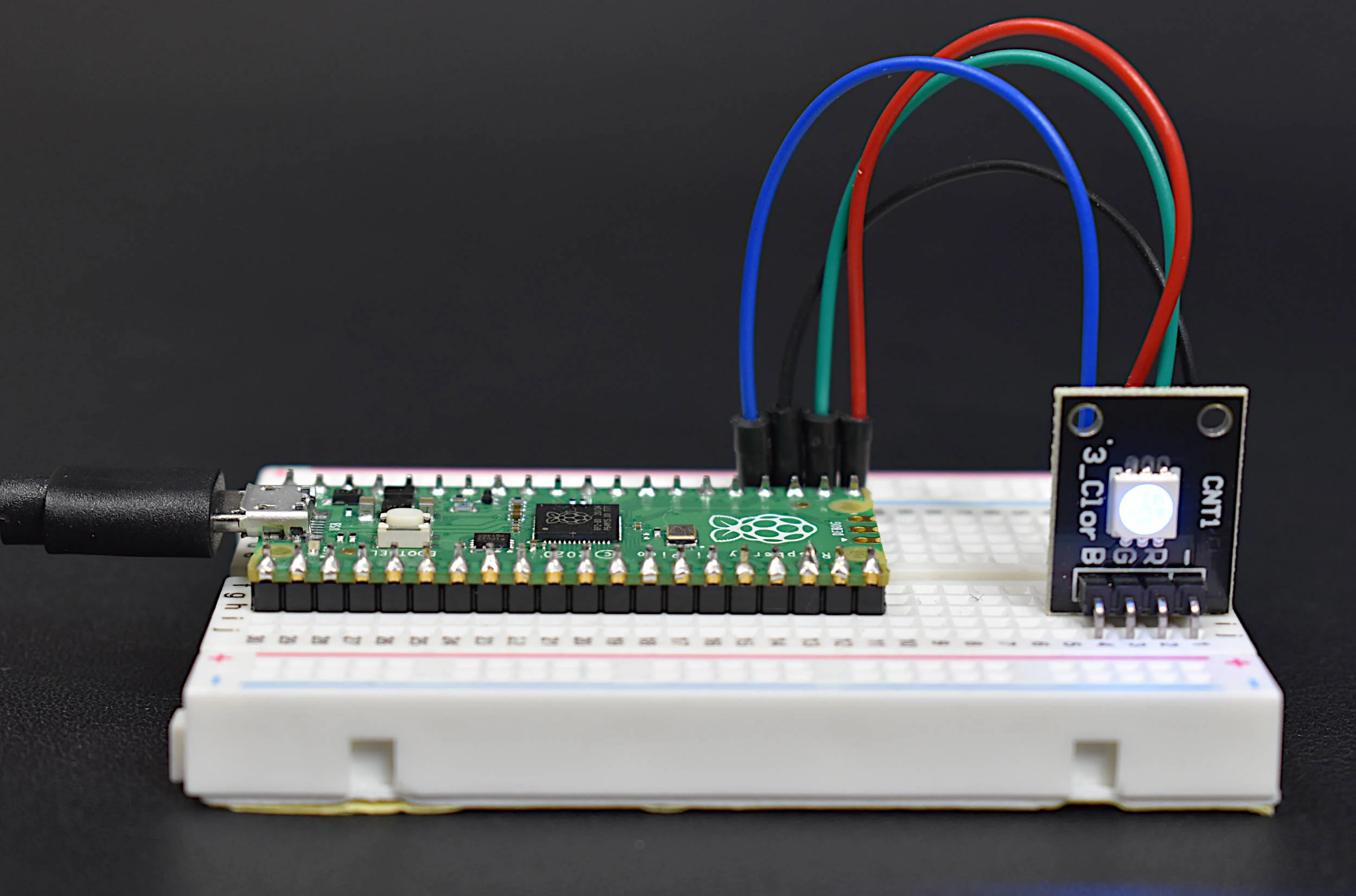

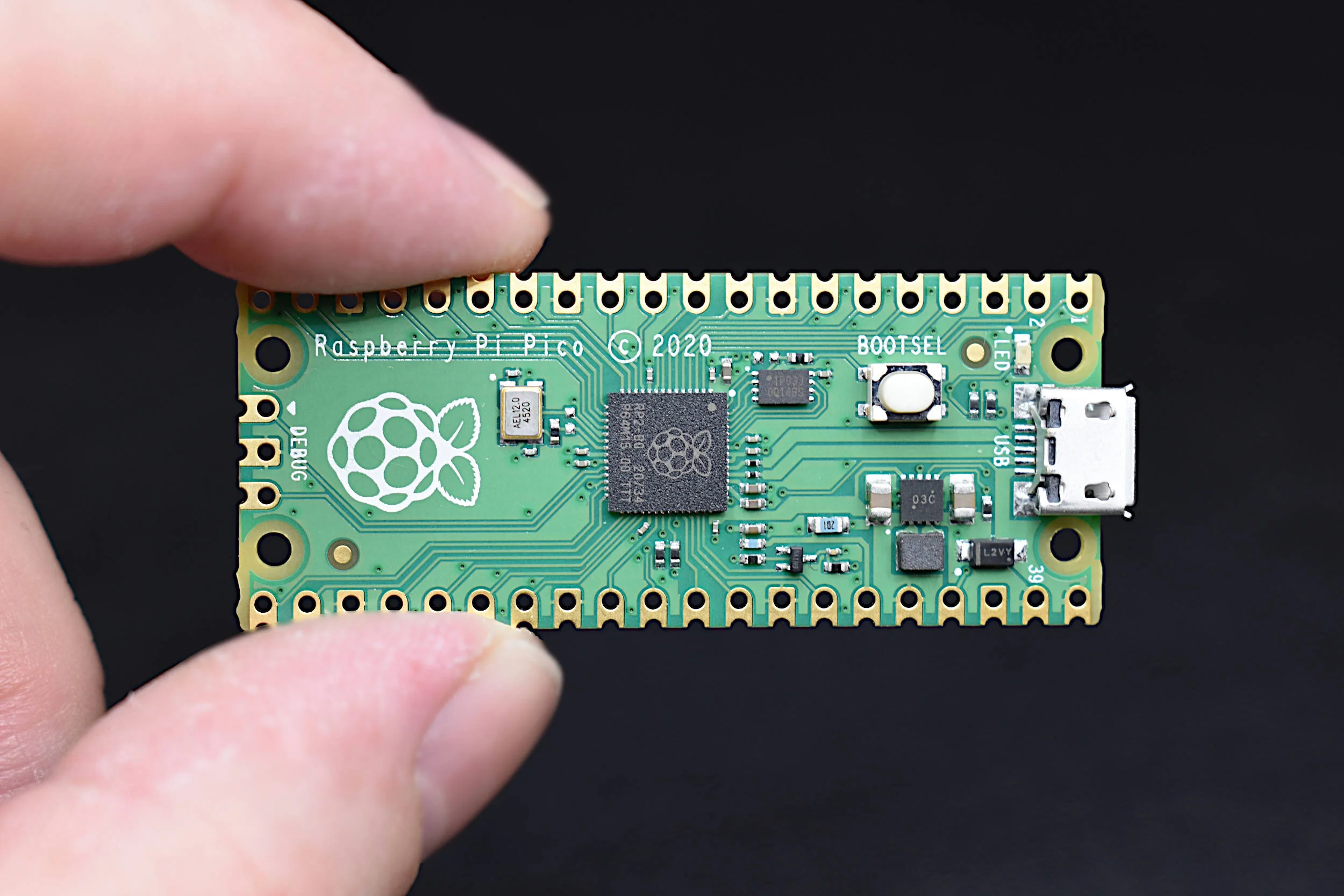

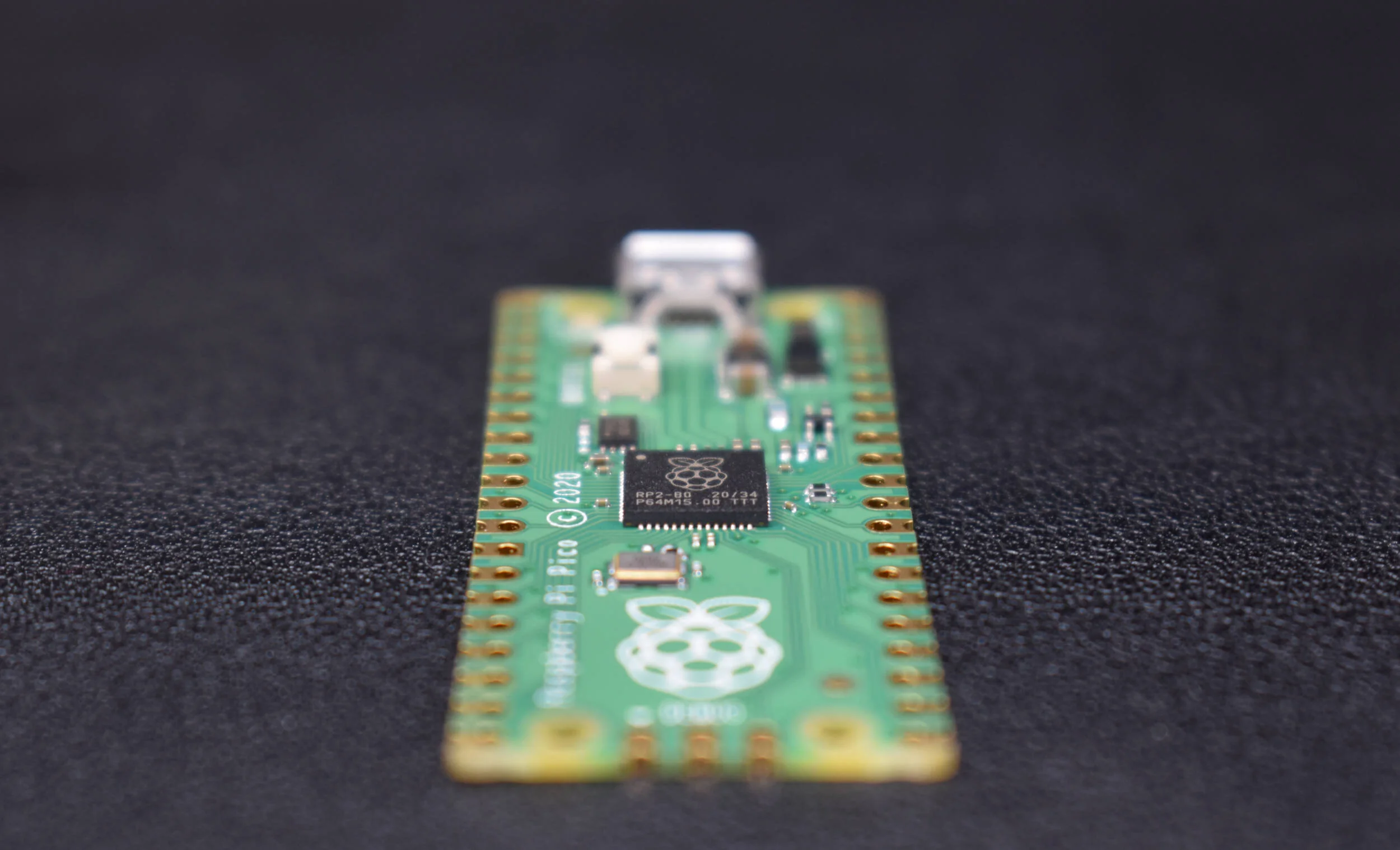

The Raspberry Pi Pico is a new microcontroller designed by the Raspberry Pi foundation. The Pico is a groundbreaking board that is meant to use MicroPython in its native micro USB port. The RP2040 is the microcontroller chip at the center of the Pico, which has a dual-core Arm Cortex M0+ processor, capable of clocking at 133 MHz, which is much faster than many of the Arduino boards currently on the market. The Pico has GPIO pins and interfaces such as: SPI, UART, I2C, PWM, and a 12-bit analog-to-digital converter (ADC). This Raspberry Pi Pico Kit comes with the Pico microcontroller, an RGB LED, a breadboard, jumper wires, and USB cable.

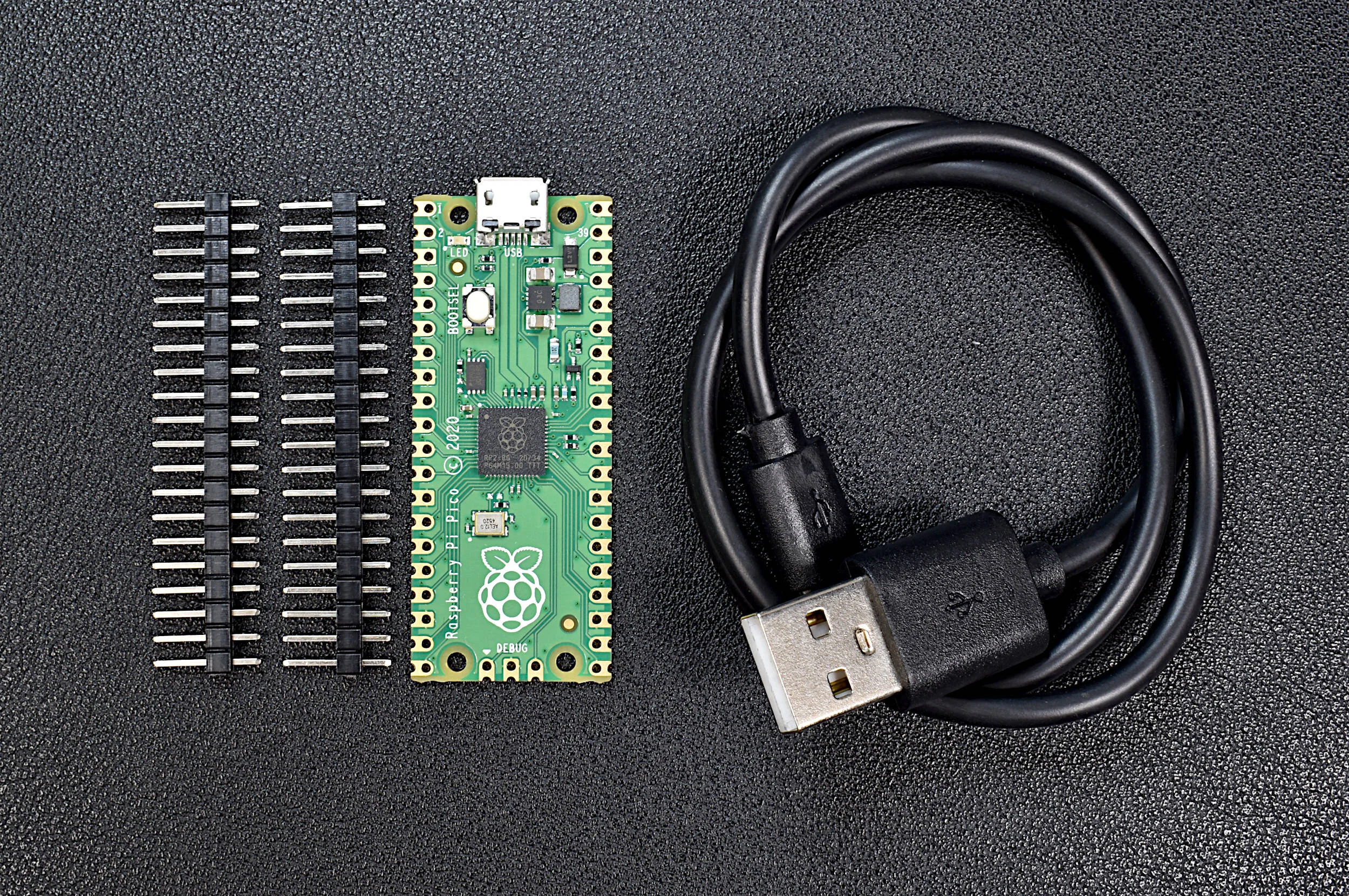

Included in the Raspberry Pi Pico Starter Kit:

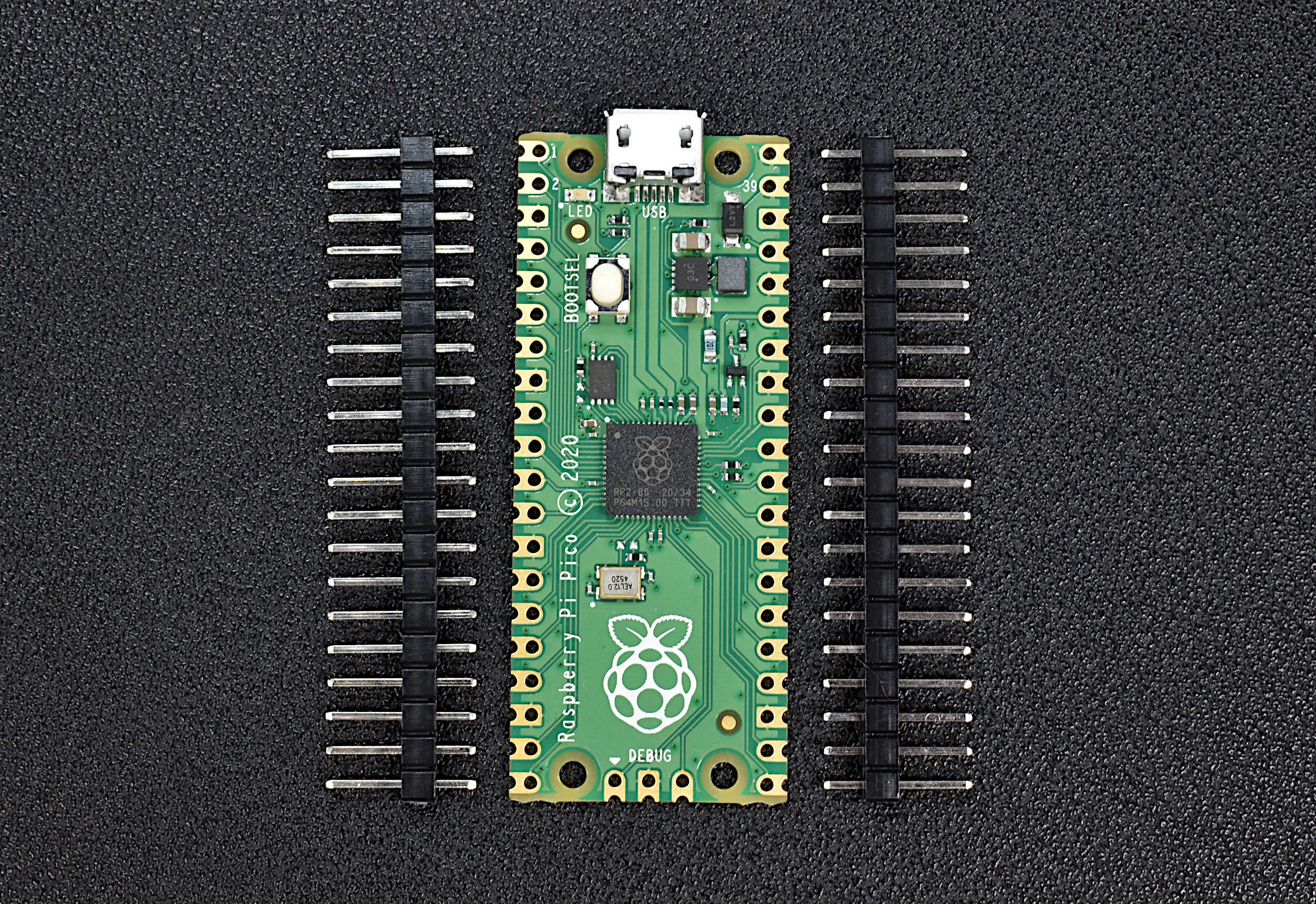

  • 1x Raspberry Pi Pico Board

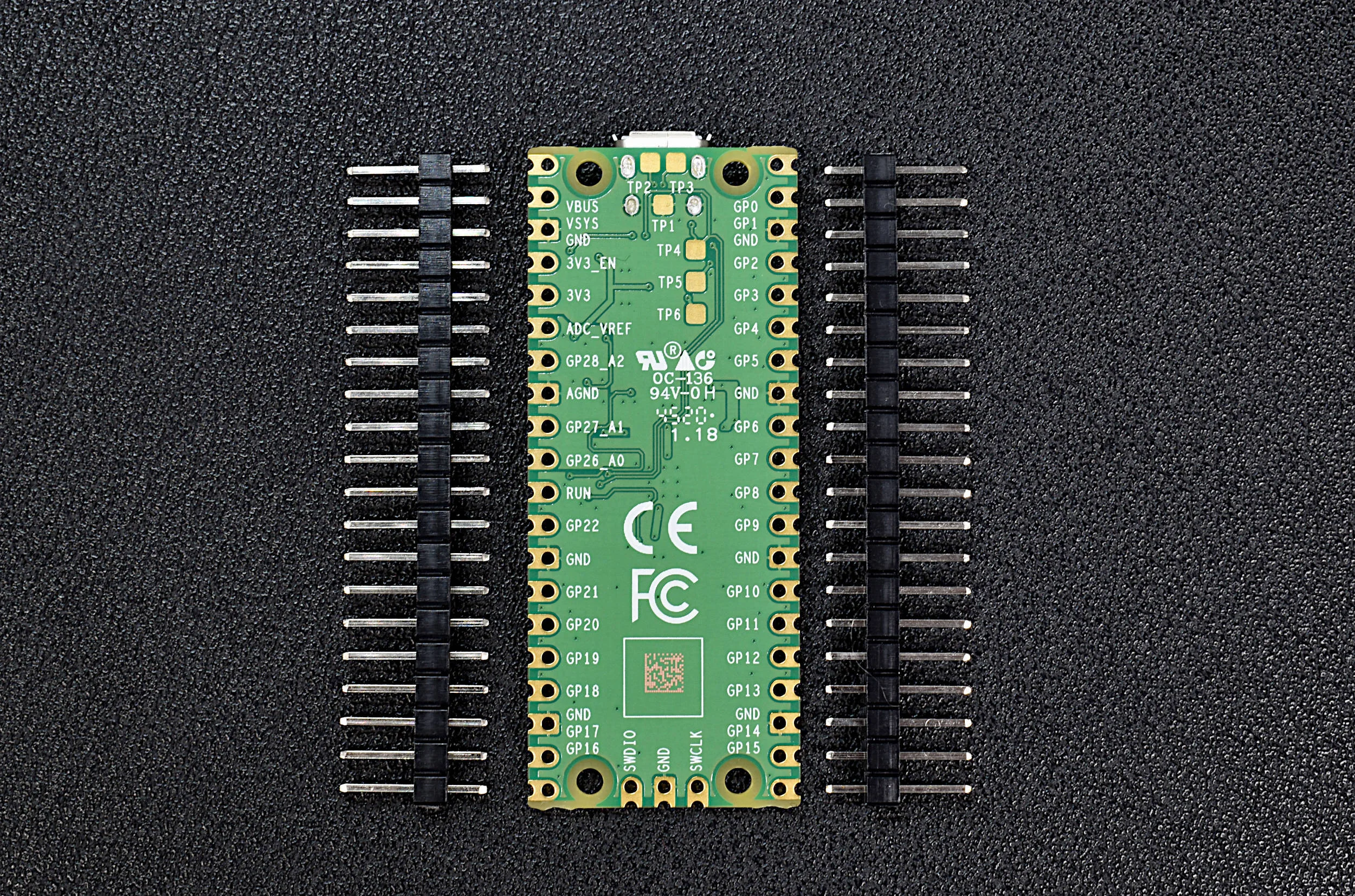

  • 2x 20-pin Headers

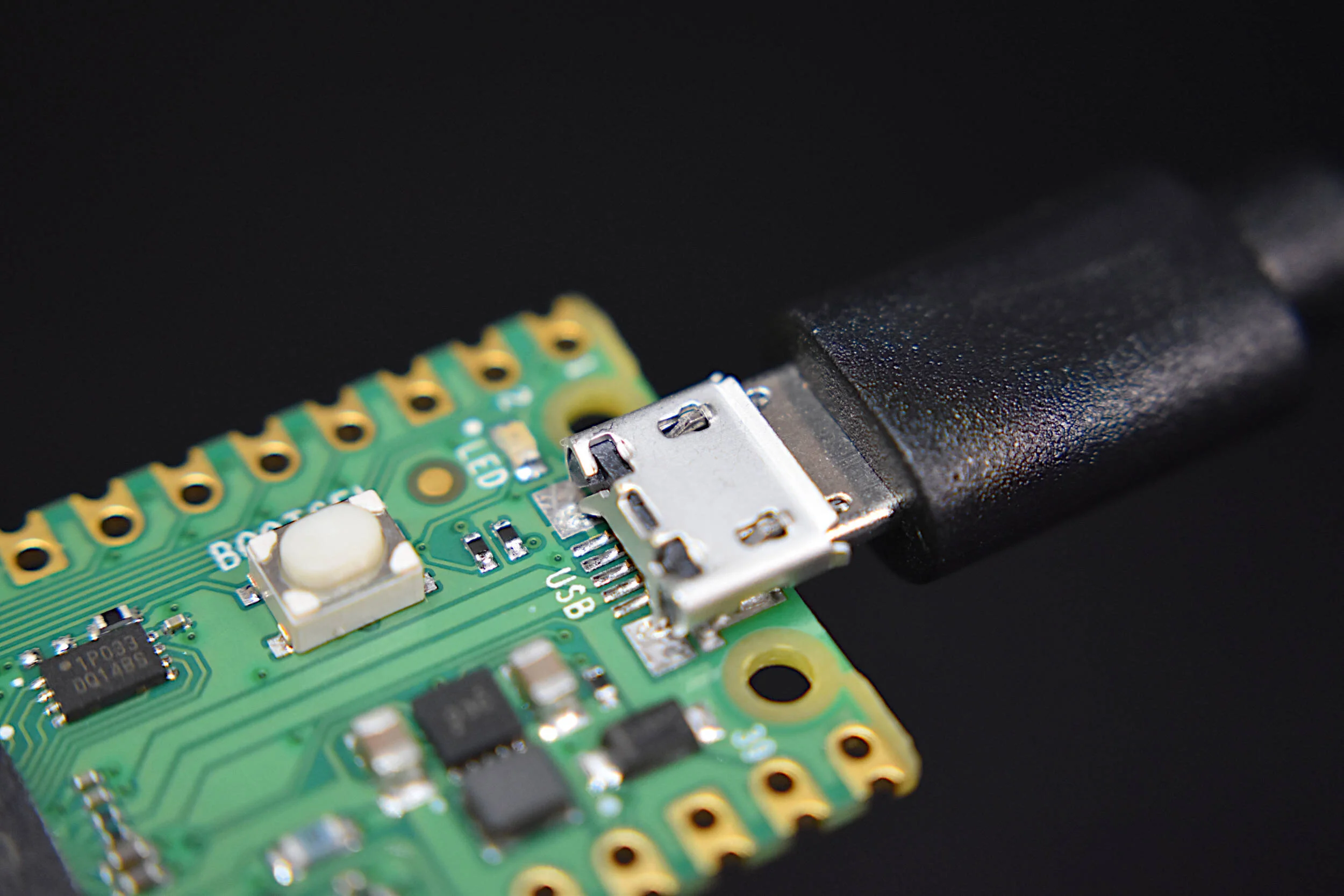

  • 1x Black 0.5m Micro USB Cable

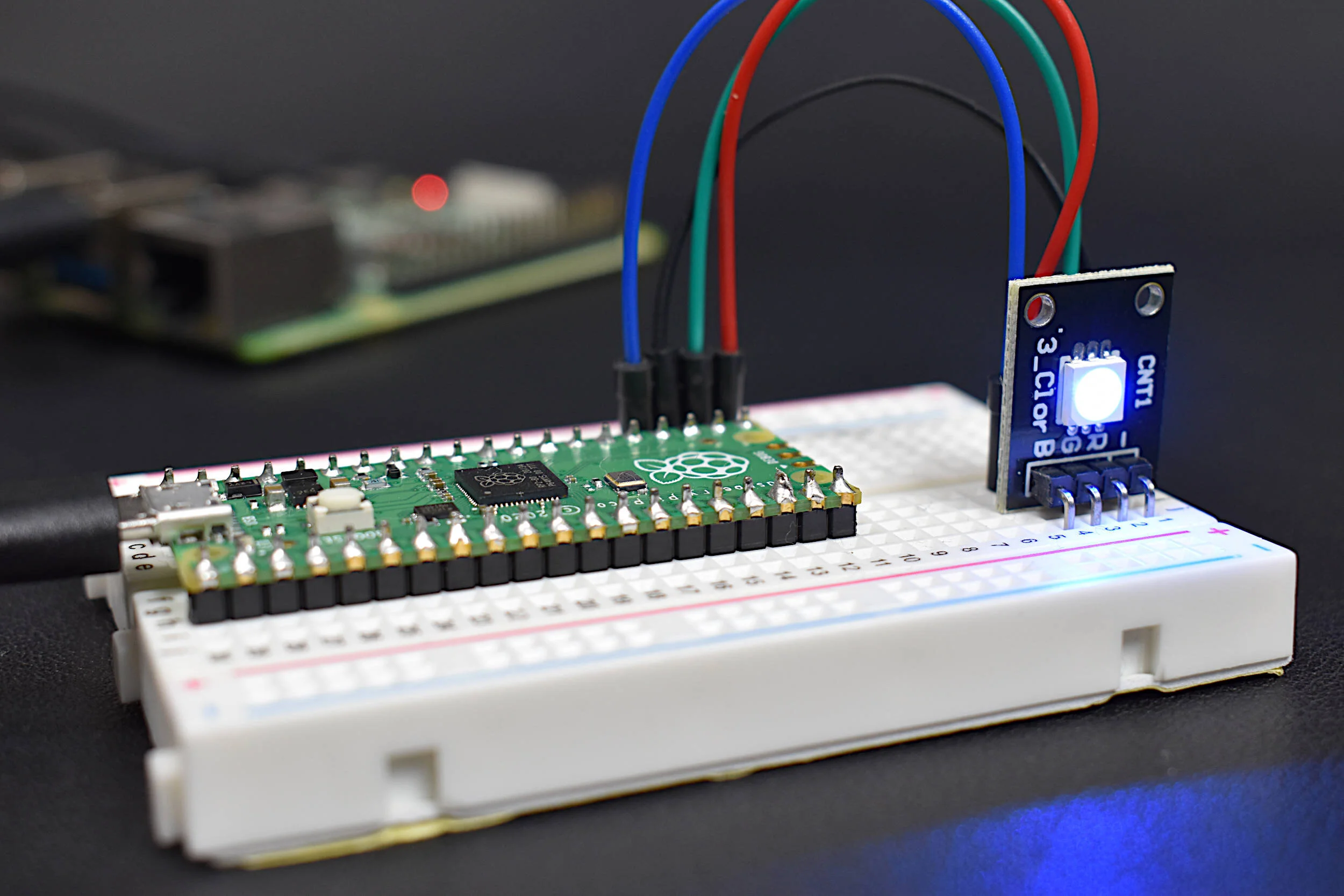

  • 1x RGB LED

  • 4x Male-to-Male Jumpers

  • 1x Half Breadboard (White)

Features of the Raspberry Pi Pico:

  • 1.8V - 5.5V Input Voltage

  • 21 mm × 51 mm Board Geometry

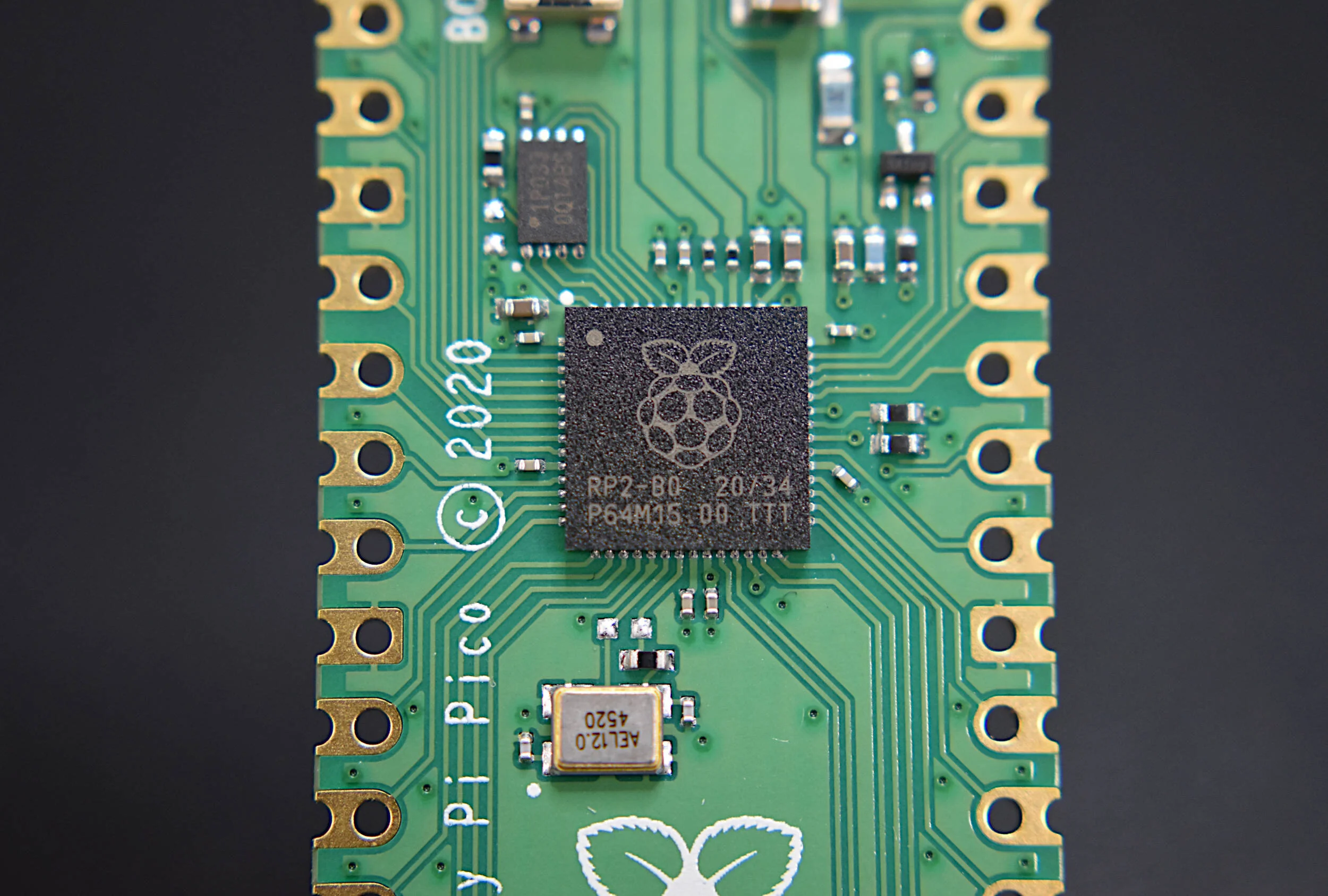

  • RP2040 microcontroller

  • Dual-core Arm Cortex-M0+ processor (Clock Speed up to 133 MHz)

  • 264KB on-chip SRAM, 2MB on-board QSPI Flash

  • 26x GPIO pins (3x 12-bit Analog Inputs)

  • 2x UART, 2x SPI, 2x I2C, 16x PWM

  • 1x USB 1.1 controller and PHY, with host and device support

  • 8x Programmable I/O (PIO) state machines for custom peripheral support

  • Operating temperature -20°C to +85°C

  • Low-power sleep and dormant modes

  • Onboard Temperature sensor

  • Accelerated integer and floating-point libraries on-chip

  • Raspberry Pi Pico Datasheet, RP2040 Datasheet

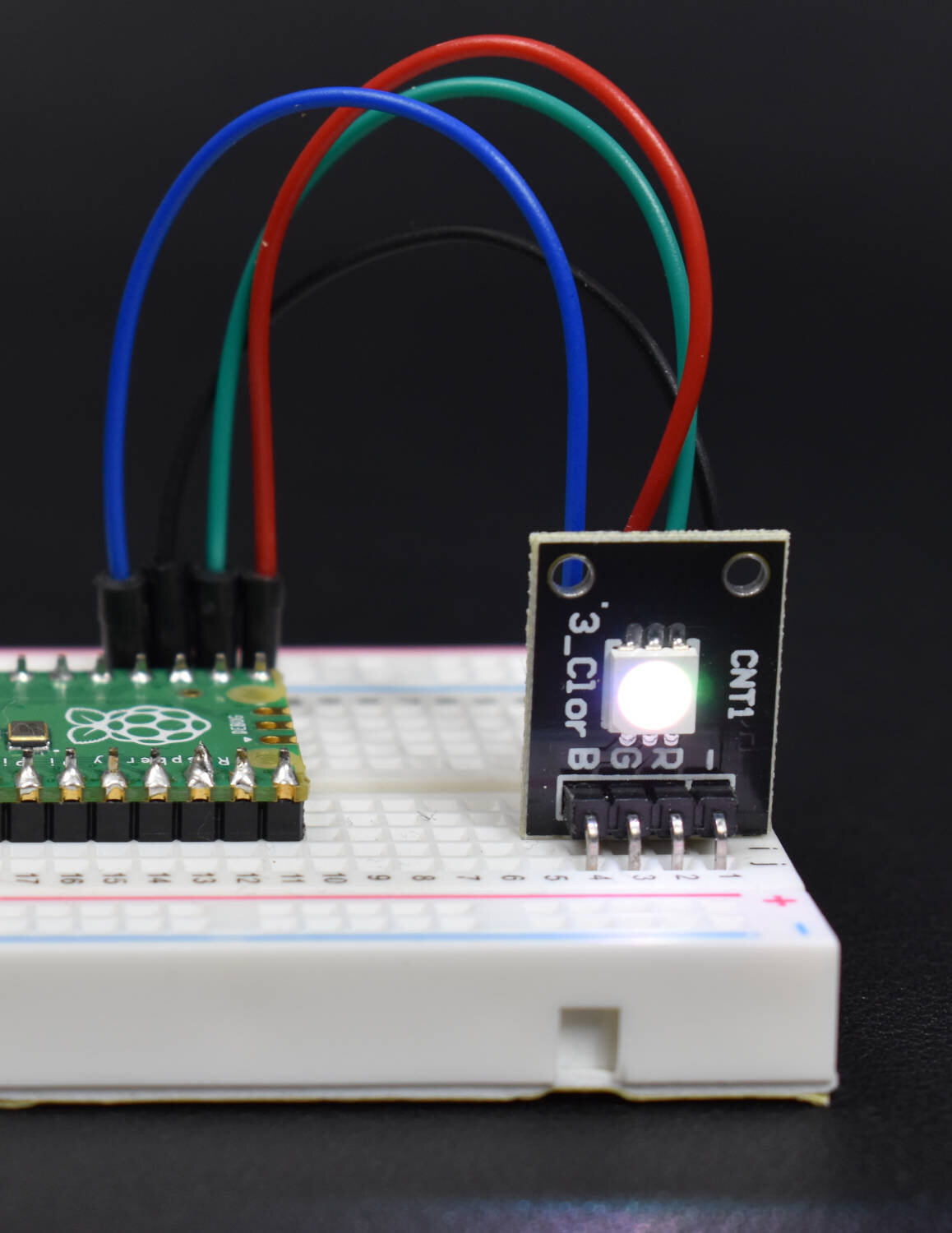

NOTE: Our batch of RGB LED modules have reversed labels for green and red, meaning, the label R is for green, and G is for red. This was noticed after receiving and testing the modules from our manufacturer.
