The MakerBLE board is a Bluetooth Low Energy (BLE) microcontroller development board based on Nordic’s nRF52840 chip. The MakerBLE acts as an Arduino board and a BLE-enabled device. It has much of the functionality of classic Arduino boards, while also having an integrated BLE chip capable of communicating via BLE 5.0. This means that many Arduino projects can be Bluetooth-enabled with just a few lines of code and the BLExAR app!

→ Getting Started Tutorial for MakerBLE Board ←

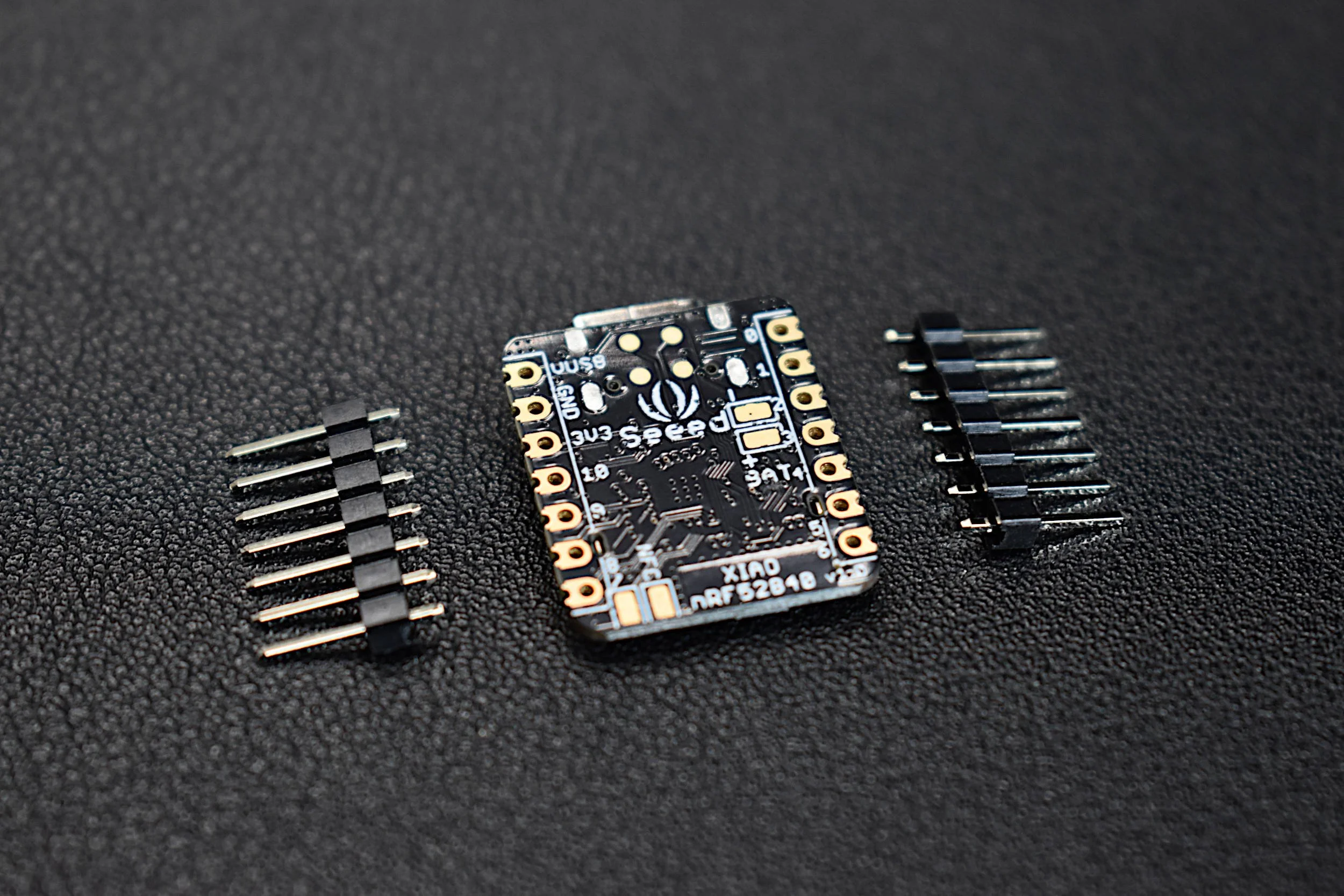

Included in the MakerBLE Package:

• 1x MakerBLE Board

• 2x 7-Pin Header

• 1x Black USB-C to USB2.0 Cable (1m long)

Some Features of the MakerBLE Board:

• Arduino Bootloader

• Nordic nRF52840, ARM® Cortex™-M4 32-bit processor with FPU operating at 64 MHz

• 3.3V Operating Voltage and Logic

• 3.3V-5V Input voltage (3.7V LiPo Battery Compatible)

• Ultra-low sleep power: 5 μA, deep sleep model

• Wireless capabilities: Bluetooth 5.0, NFC, and ZigBee module with onboard antenna

• Multiple Peripherals: 1x Reset button, Ix UART, 1x IIC, 1x SPI, 1x NFC, 1x SWD, 11x GPIO, 6x ADC, 1x Three-in-one LED,1x User LED

• Onboard 2 MB flash

• Single-sided components, surface mounting design (low profile)

• 14 Available I/O Pins: 11 Digital, 6 Analog

• Physical Dimensions: 21mm x 17.5mm

• Weight: 3 g (Unsoldered), 5g (Soldered)

• Arduino IDE Compatible

• GitHub Repository with example scripts and projects
