The MLX90640 is a 768-pixel (32 x 24), low-cost thermal camera. It uses an array of infrared detectors (and filters) to detect the radiation given off by nearby objects by taking advantage of Planck’s radiation law. The MLX90640 is most notable because of its easy-to-use Python libraries that allow it to be read by Raspberry Pi computers. The MLX90640 can be used to map and record high-resolution temperature maps at refresh rates of up to 64 times per second (64Hz).

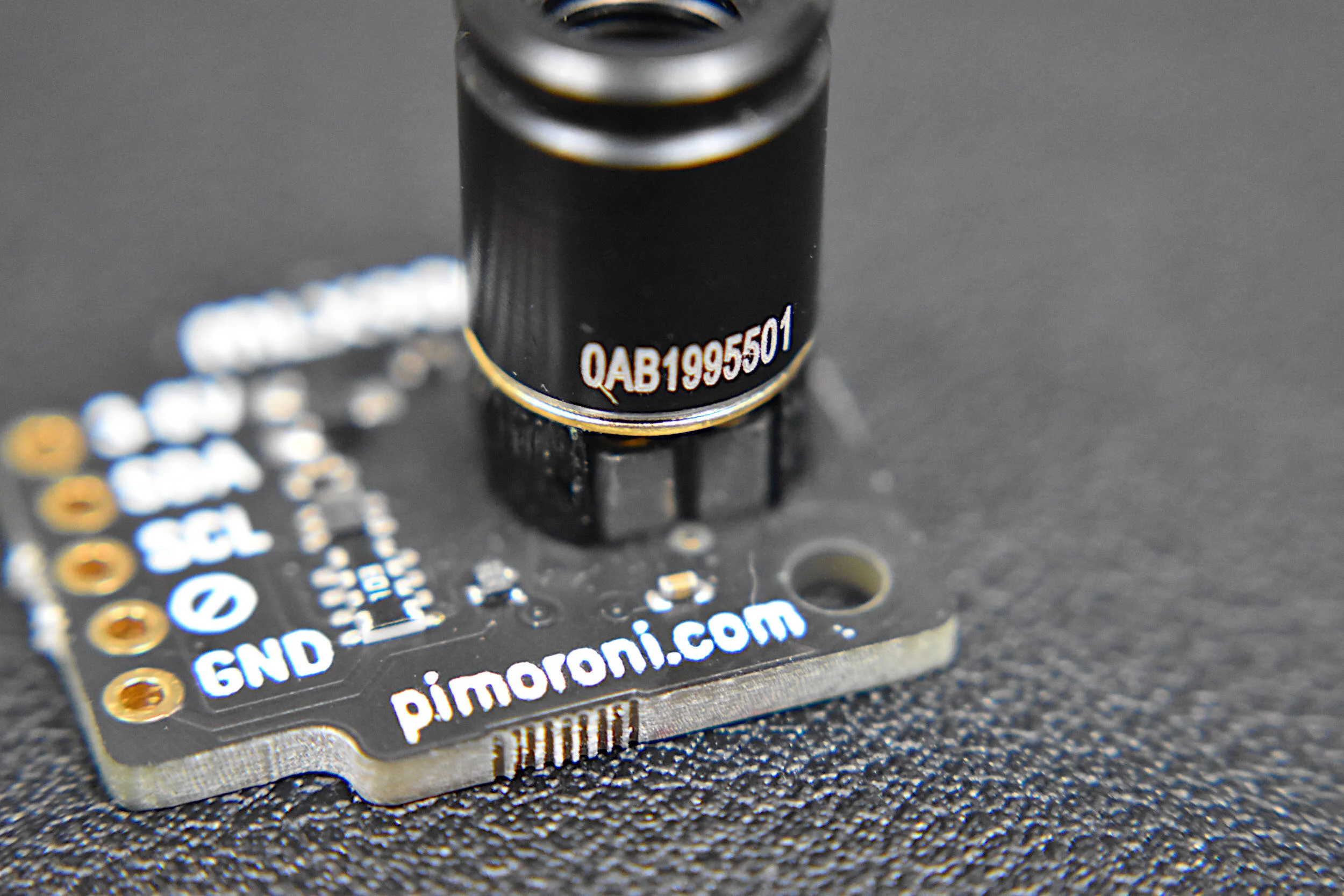

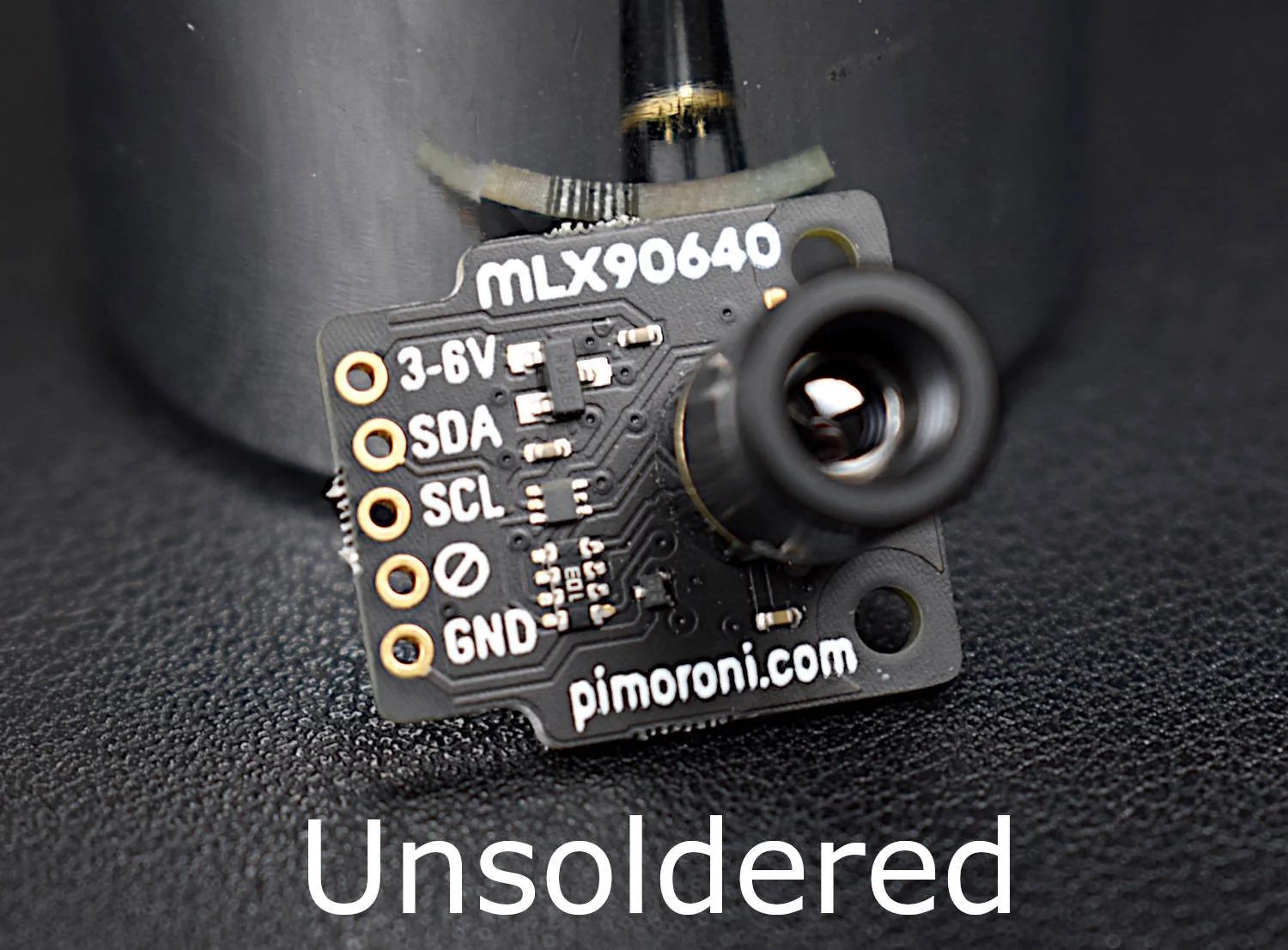

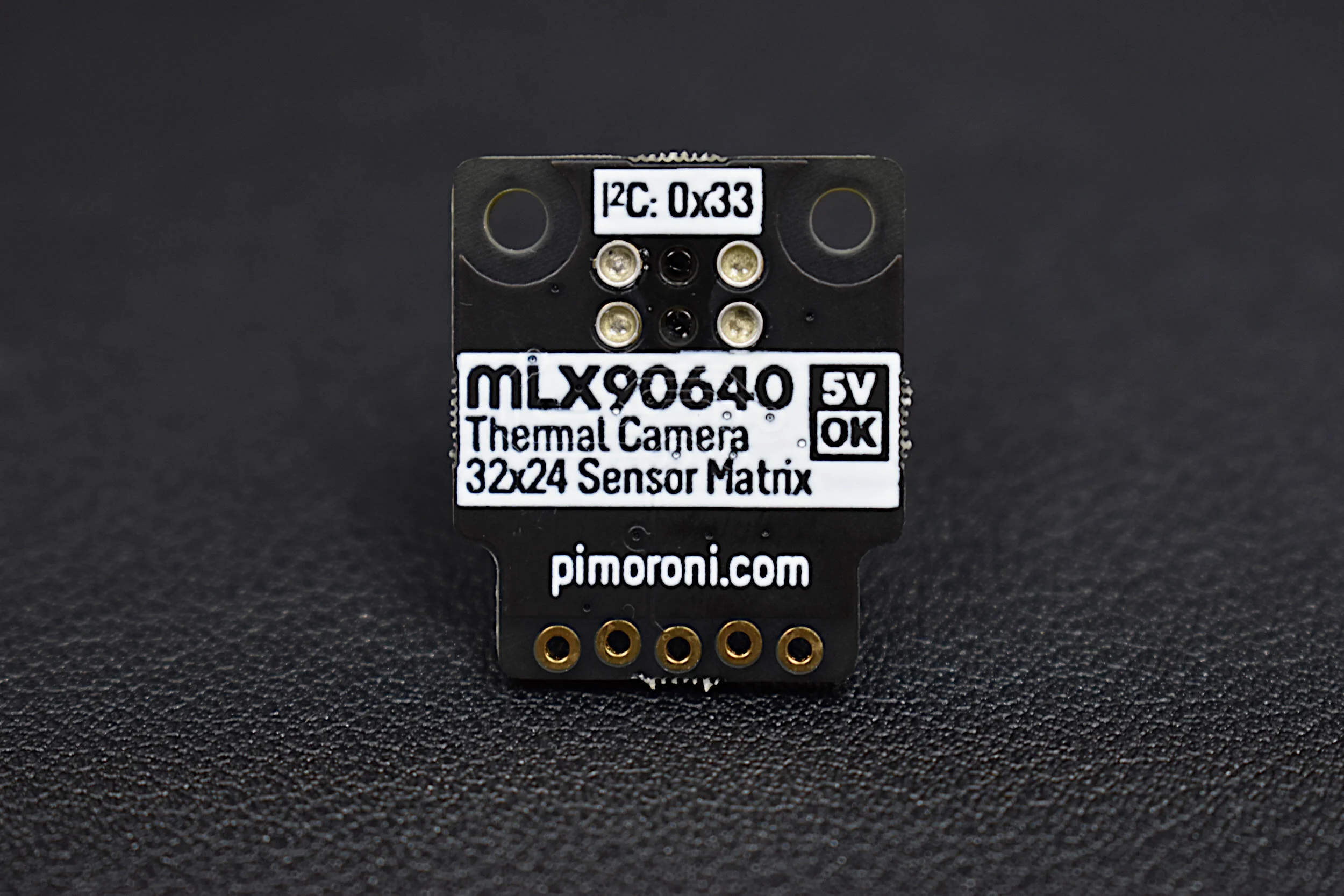

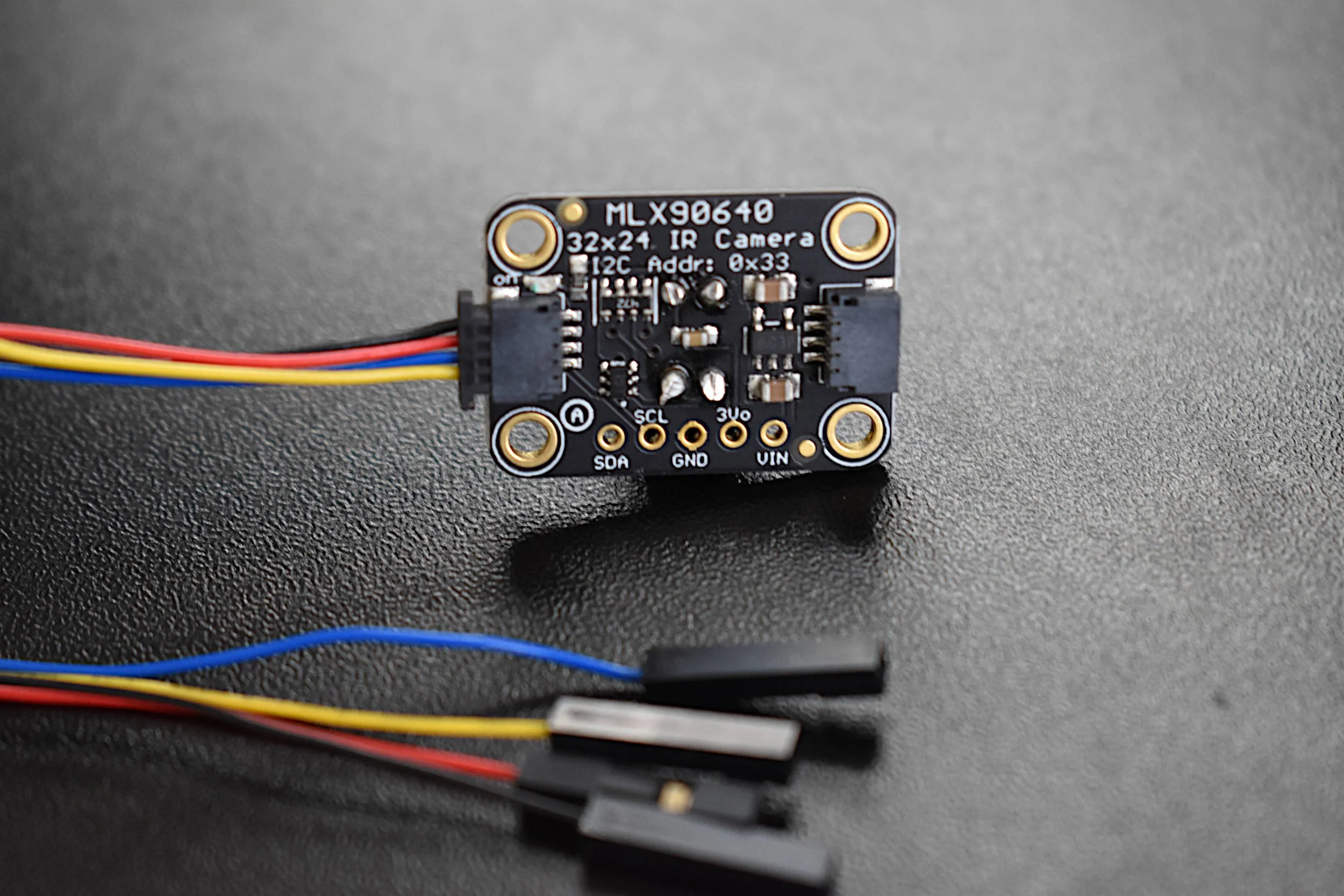

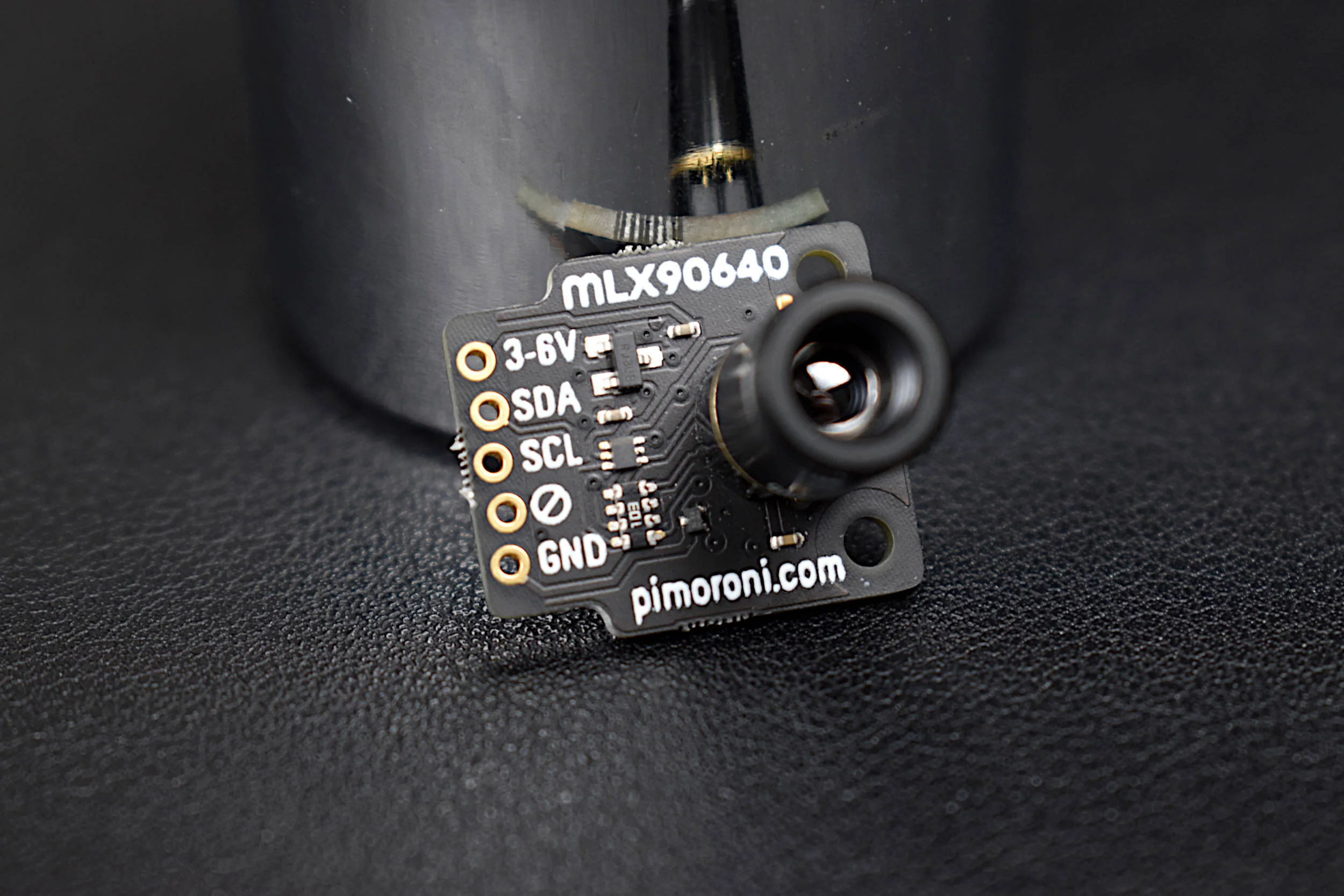

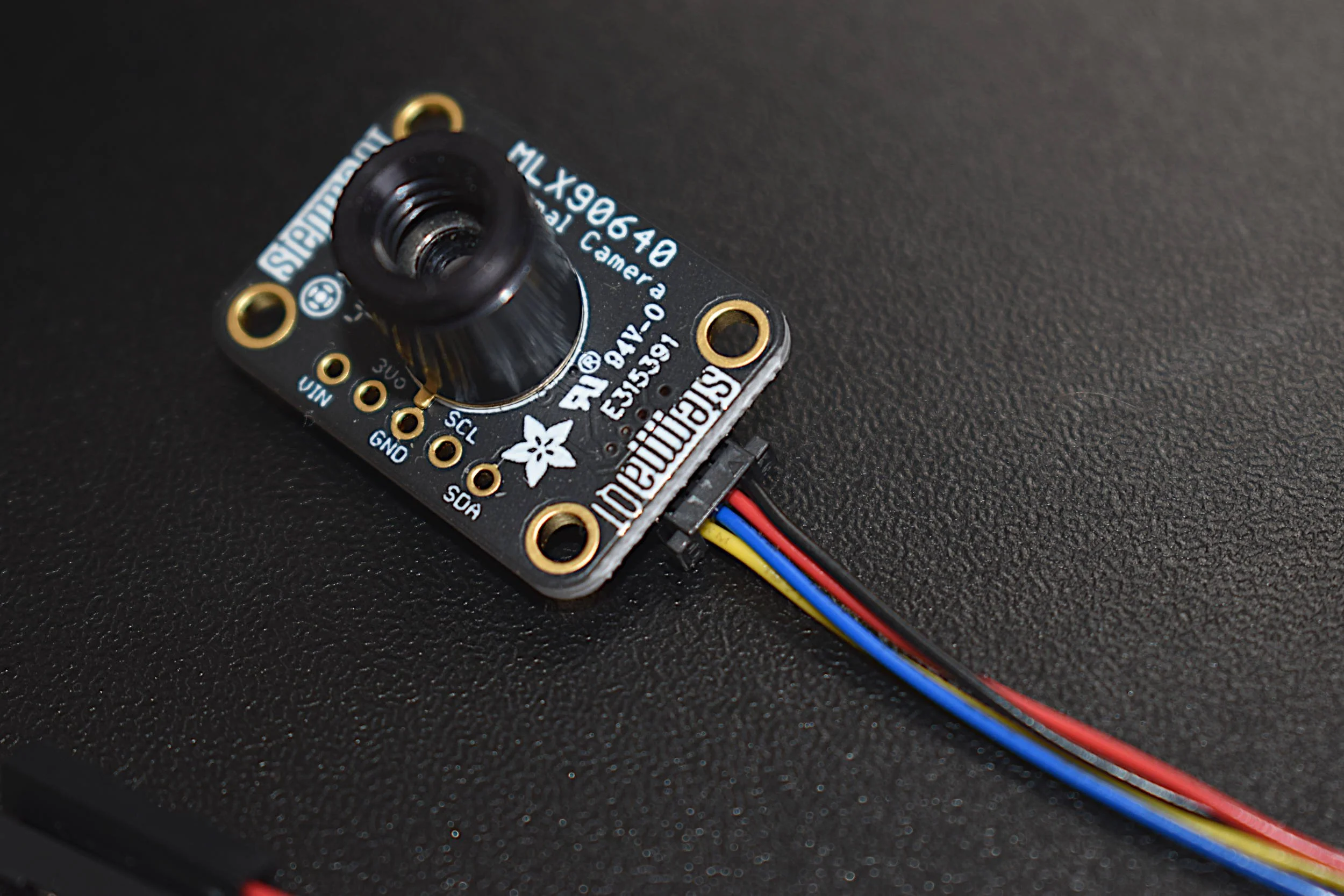

NOTE: There are two versions here, 1. an unsoldered board that needs to be soldered to be wired properly; and 2. a version that has a breakout connector that can be connected directly to a Raspberry Pi via the JST Dupont connector.

Included in the MLX90640 Thermal Camera Sensor Package:

• 1x MLX90640 Thermal Camera (32 x 24 Pixels, 55° x 35°)

• Pin Header

• 5x Male-to-Female Jumper Wires (or JST Dupont connector for breakout version)

Features of the MLX90640 Thermal Camera:

• Object Detection Temperatures: -40°C to +300°C

• 3V-6V Supply Voltage

• 20mA Average Current Consumption

• 32 x 24 Resolution, 768 Pixels in Total

• 55° x 35° Field of View

• I²C Communication (Address: 0x33)

• Ambient Temperature Operating Range: -40°C to +85°C

• Raspberry Pi and Arduino Compatible

• JST Dupont Breakout Pinouts:

  • Black for GND

  • Red for V+

  • Blue for SDA

  • Yellow for SCL

• MLX90640 Datasheet
