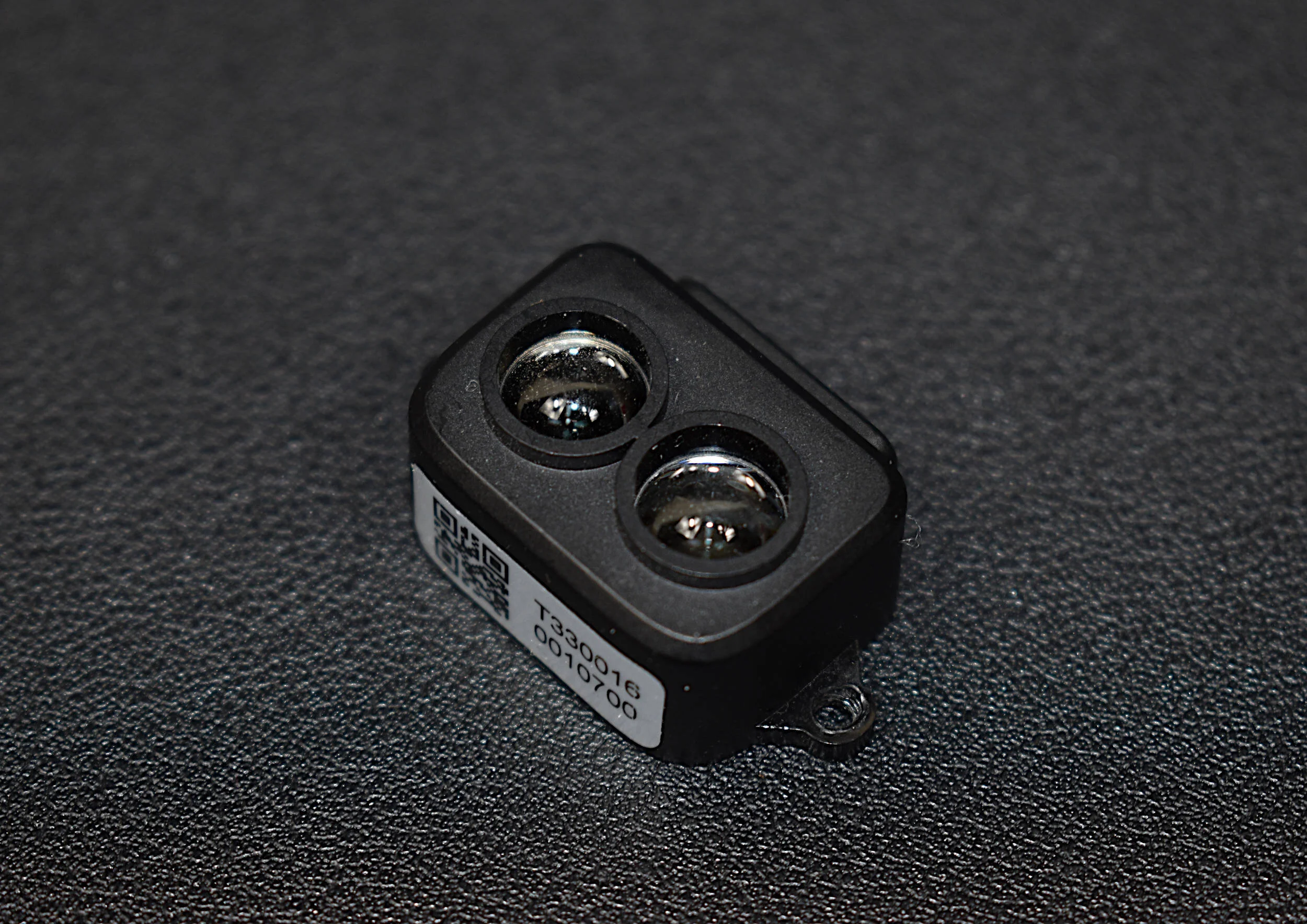

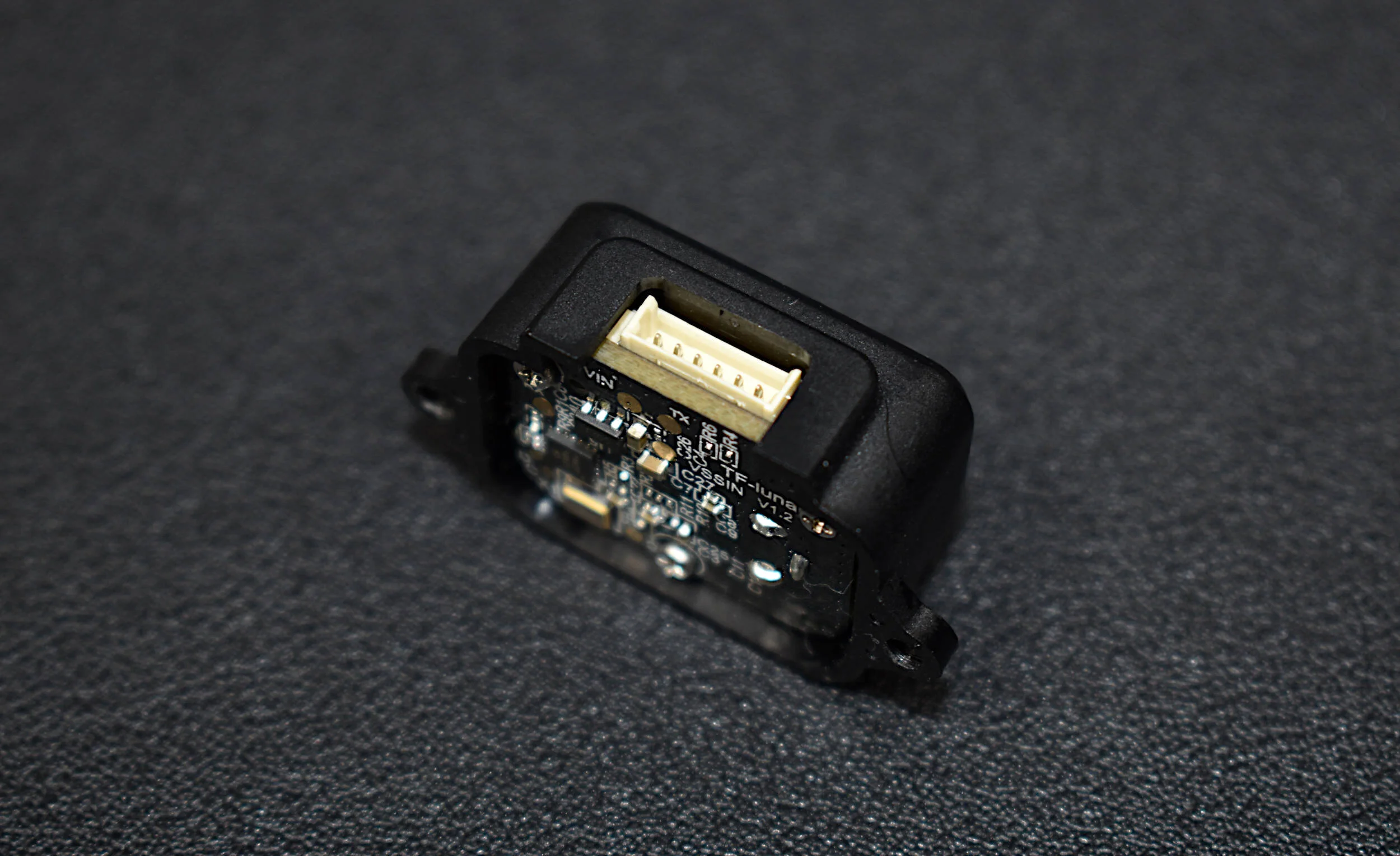

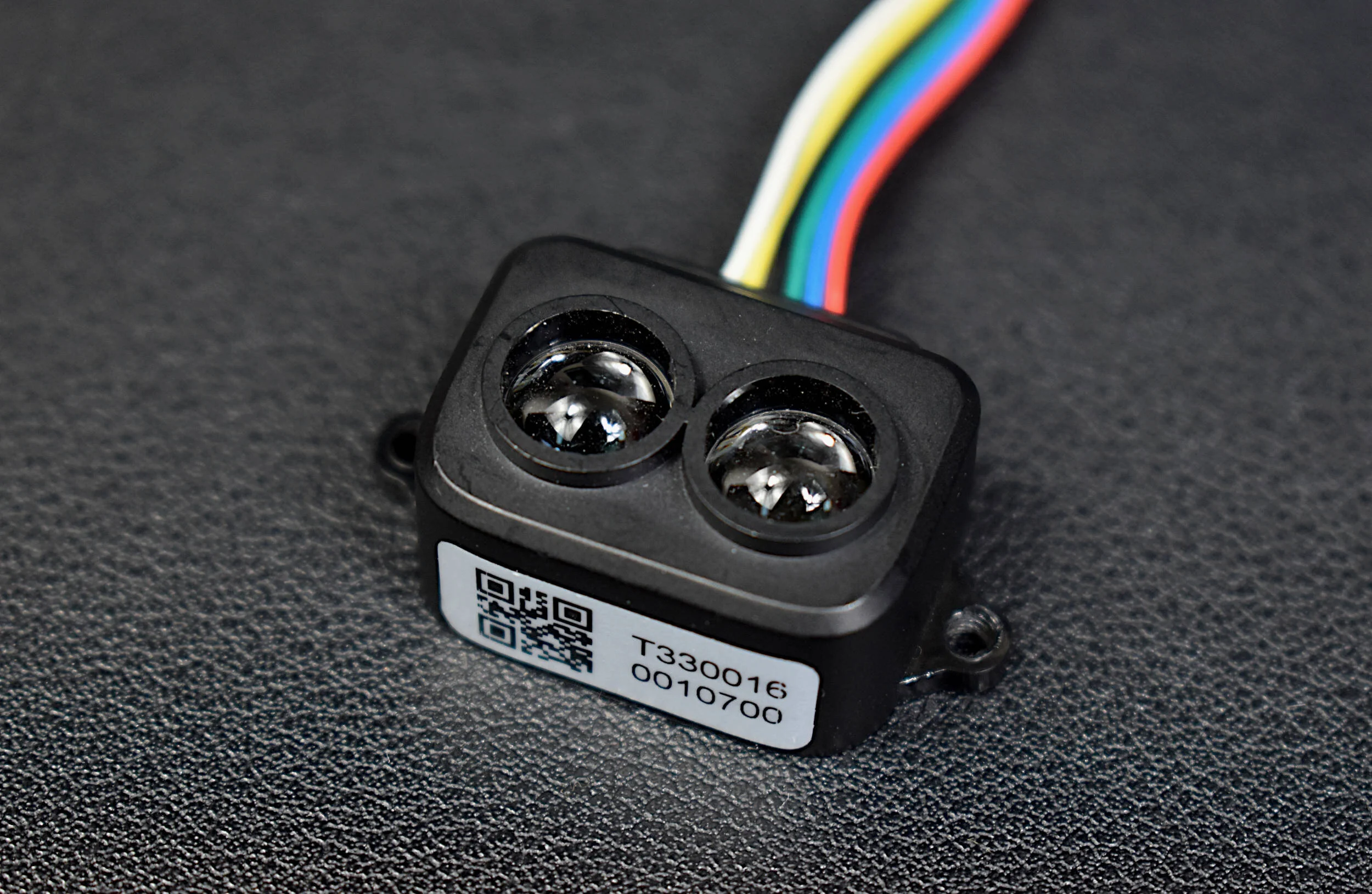

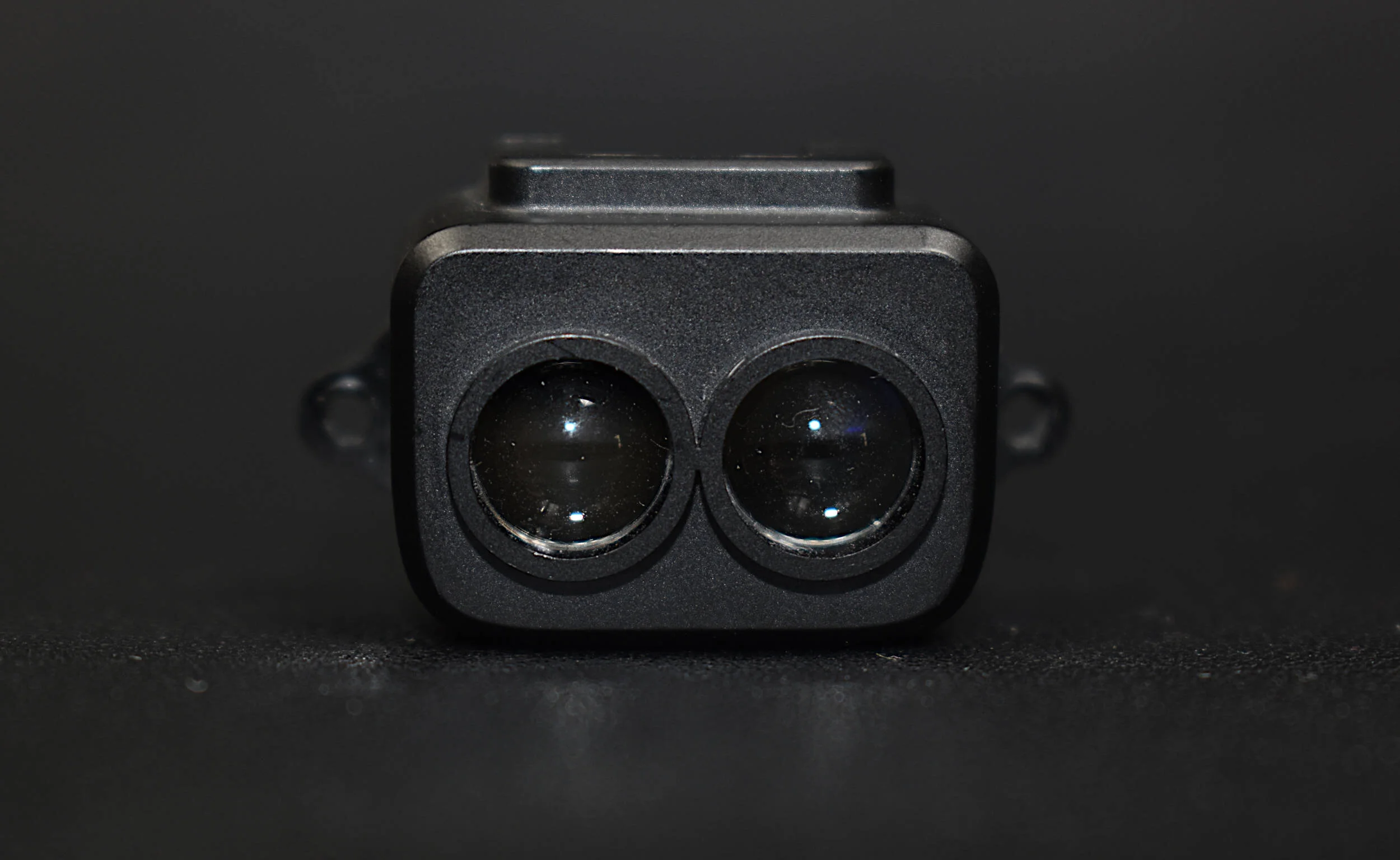

The TF-Luna is a Light Detection And Ranging (LiDAR) module capable of detecting objects 20cm - 8m away from the sensor (depending on ambient light conditions and object reflectivity). The TF-Luna can make up to 250 detections per second (250 Hz), making it a great sensor for rapid ranging applications. The LiDAR module uses an 850nm vertical cavity surface emitting laser (VCSEL) acting in the Class 1 category, making it a very safe option for most applications. The TF-Luna is also compatible with Raspberry Pi and Arduino via UART serial communication and operates at a supply voltage range of 3.7V-5.2V.

Included in the TF-Luna LiDAR Module:

• 1x TF-Luna LiDAR Module

• 1x Micro JST connector (1.25mm to 1.25mm)

• 1x 1.25mm Micro JST connector to 2.54mm Dupont Connector

Features of the TF-Luna LiDAR Sensor:

• 0.2m - 8m Detection Range (Based on reflectivity and ambient light)

• 3.7V - 5V Supply Voltage

• ~70mA Current Consumption (150mA Peak)

• 2° Sensing Field-of-View (FoV)

• 1Hz - 250Hz Detection Update Rate

• ±1cm Detection Resolution

• ±6cm or 2% Ranging Accuracy

• 850nm Laser Source Diode (Class 1 Safety)

• UART Interface (3.3V)

• Adjustable Serial Baud Rate (Default: 115200)

• Raspberry Pi and Arduino Compatible

• TF-Luna LiDAR Datasheet | Specification Overview

• Click Here for a Tutorial with Raspberry Pi and TF-Luna
