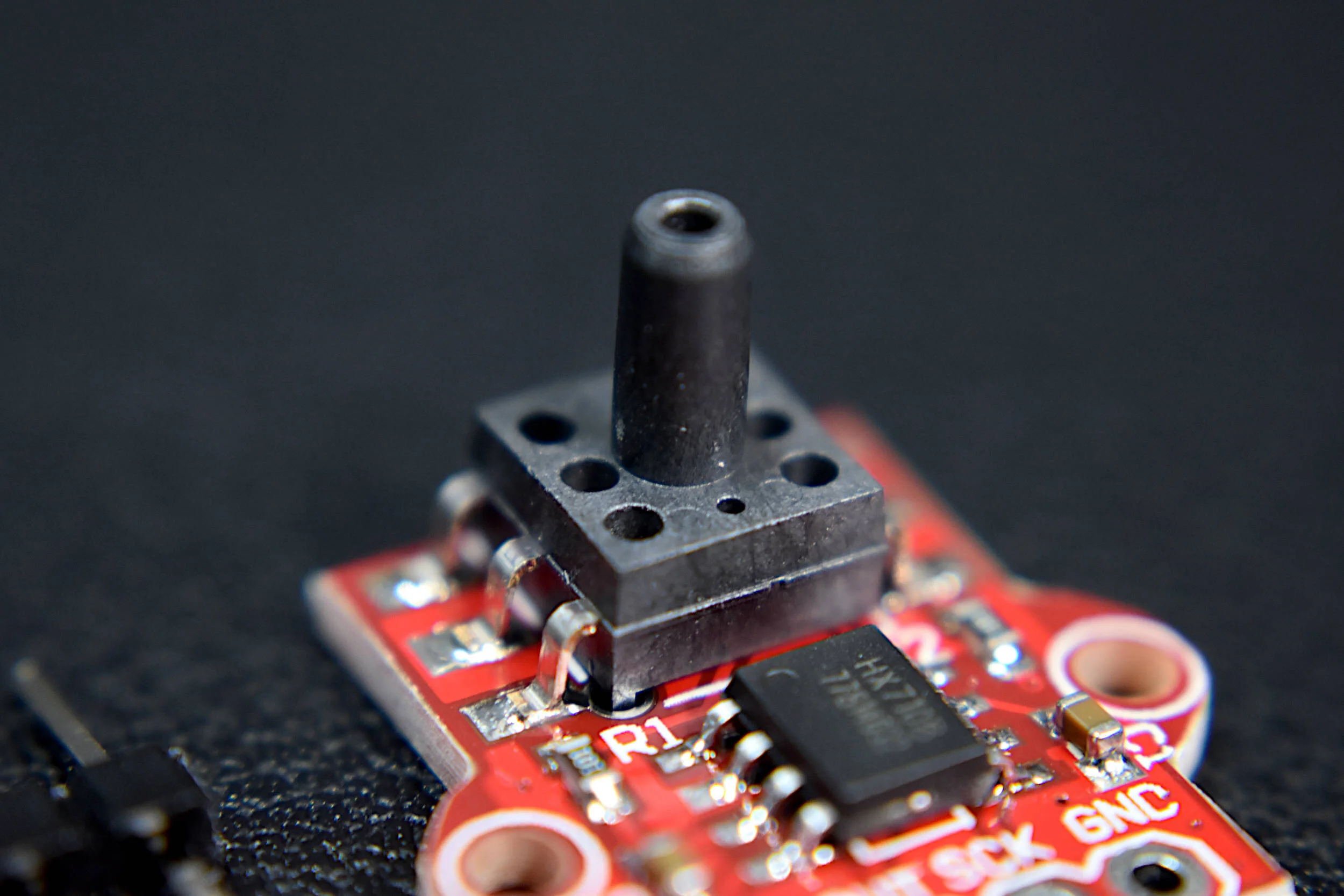

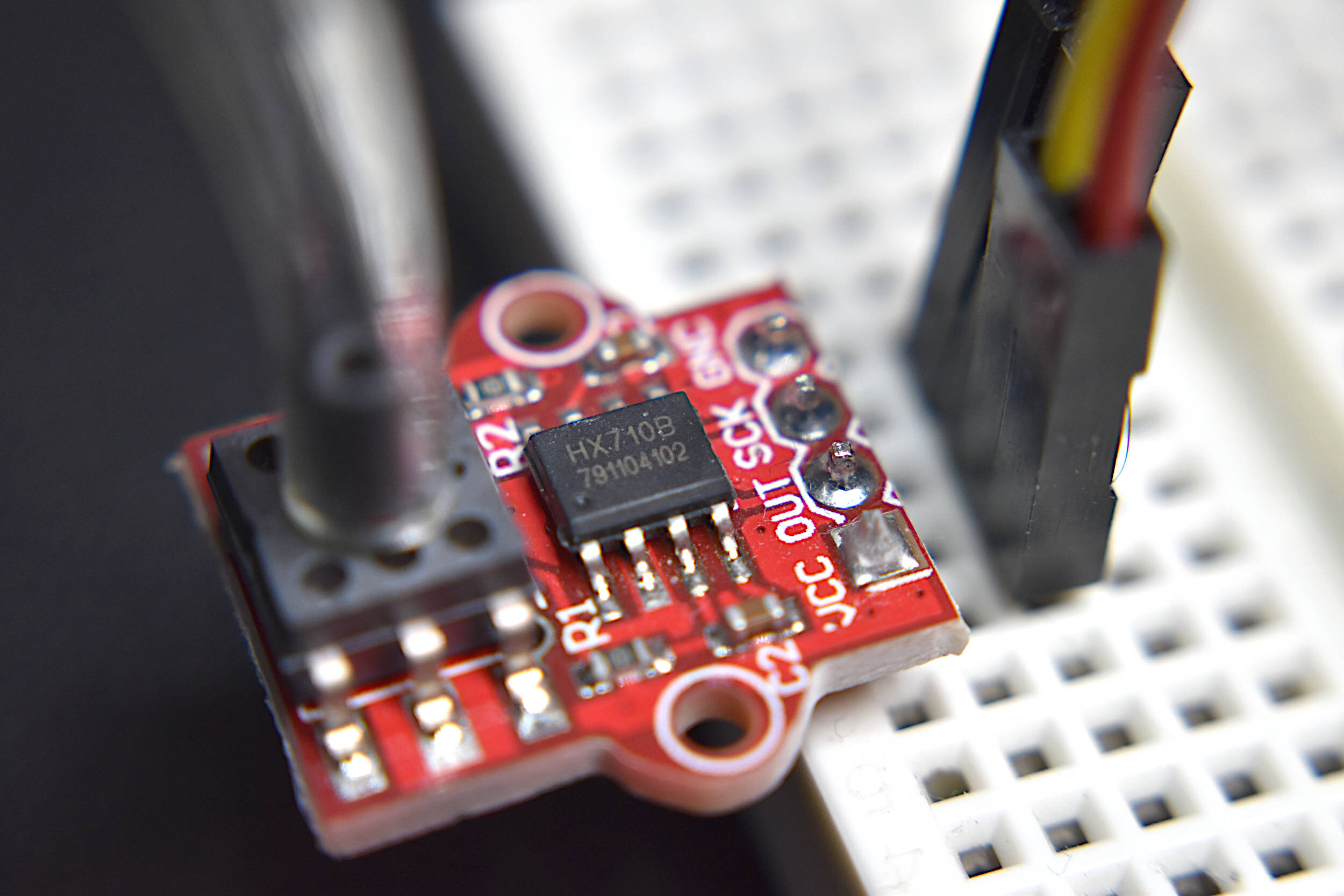

The MPS20N0040D is a gauge pressure transducer that approximates pressures from roughly -10kPa to +10kPa. The sensor uses an Hx710B 24-bit analog-to-digital converter (ADC) and signal amplifier to amplify the output from the MPS20N0040D to 0V - 5V. The response of the MPS20N0040D can be approximated using an Arduino board via 2-wire serial protocol.

Included in the MPS20N0040D Sensor Package:

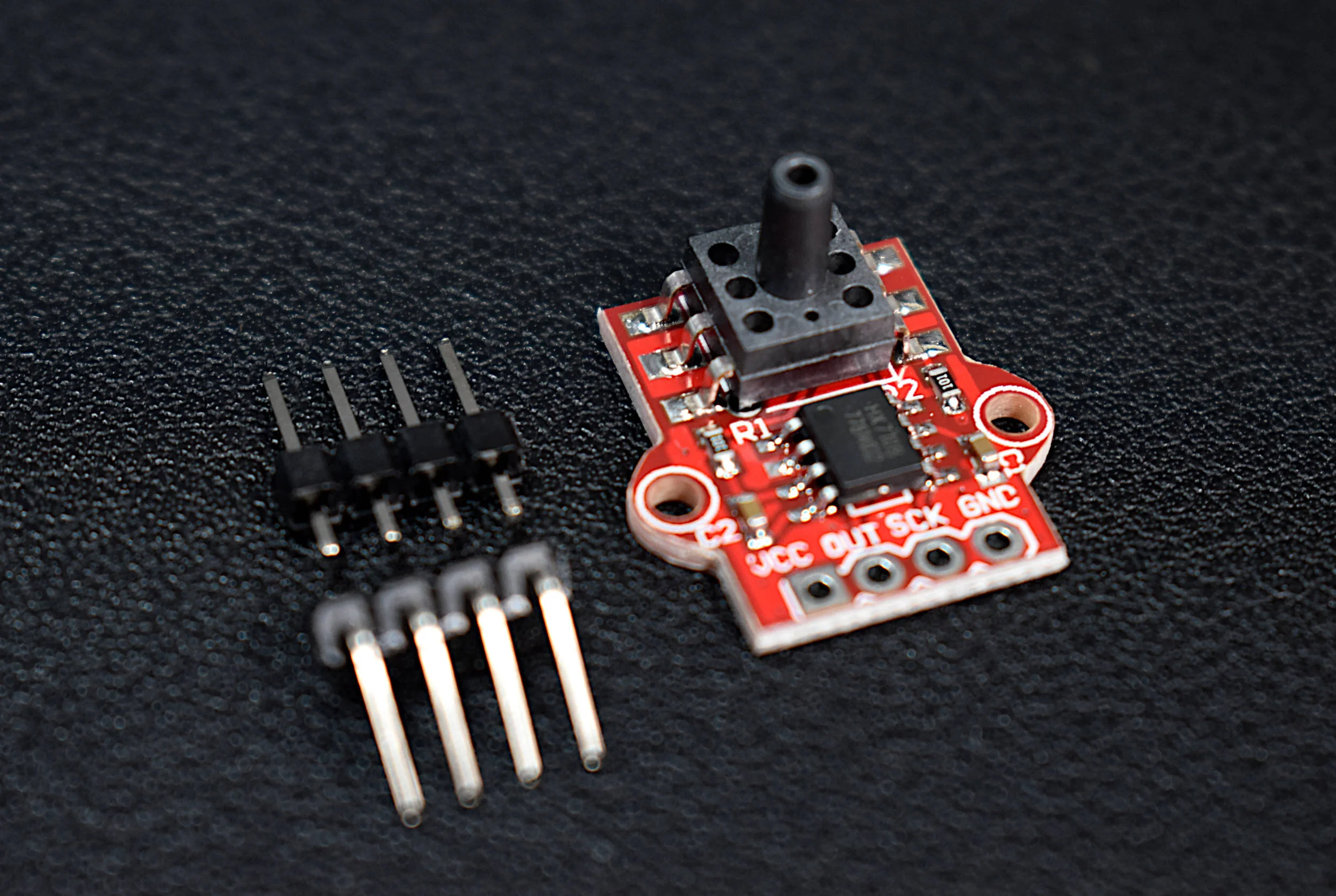

• 1x MPS20N0040D Ported Pressure Sensor

• 2x Solder Pin Sets

Some Features of the MPS20N0040D Pressure Sensor:

• 5V Operating Voltage

• -10kPa - 10kPa Measurable Pressure Range

• +25mV DC Offset, 50mV Full Scale Output

• Linear Response Between Voltage and Pressure

• Compatible with 2.5mm Tubing

• Arduino and Raspberry Pi Compatible
