Capacitive Fingerprint Reader (ID809, SAMD21)
Capacitive Fingerprint Reader (ID809, SAMD21)

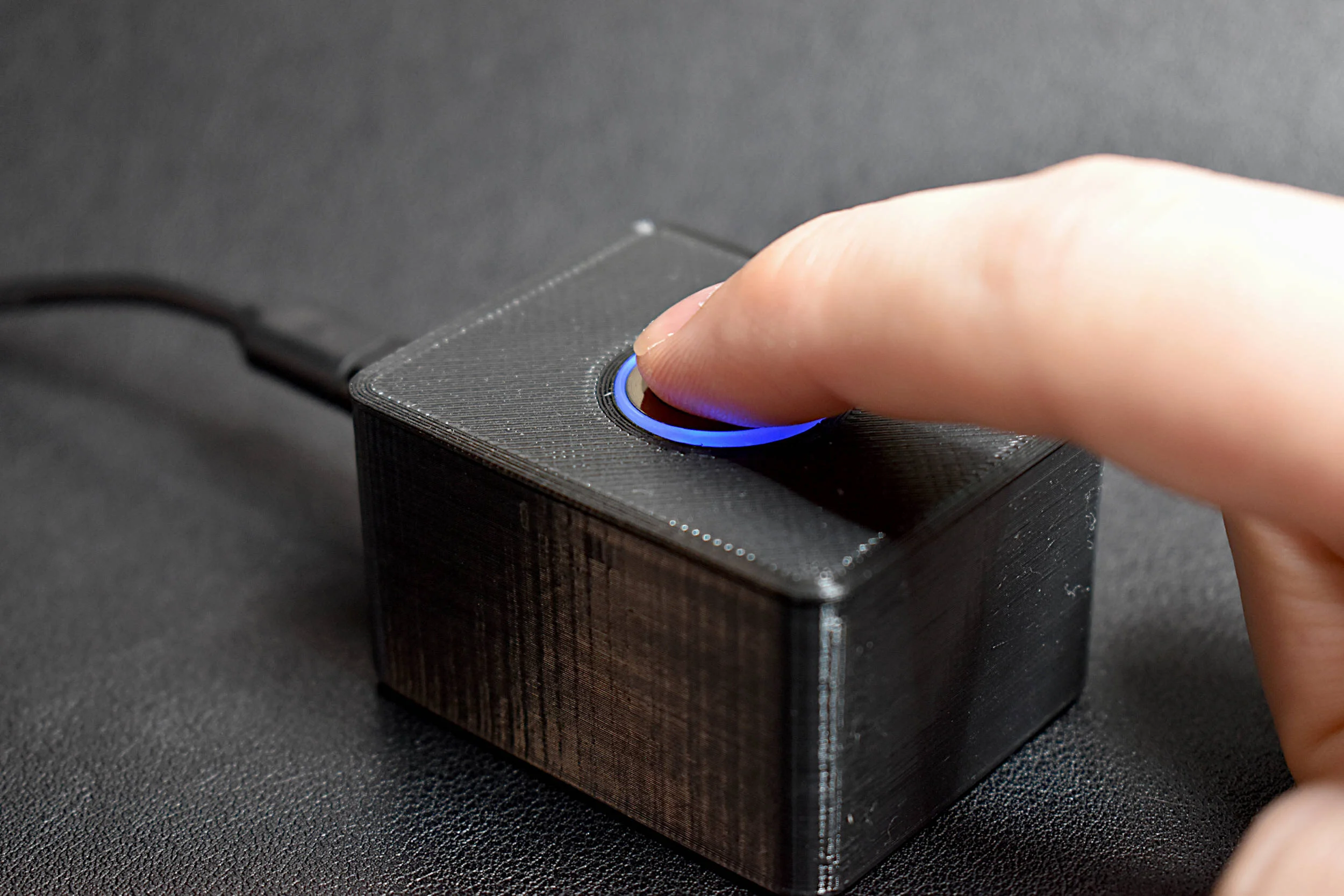

The ID809 fingerprint reader has been integrated with a SAMD21 microcontroller to create the all-in-one fingerprint reader shown here. The advantage of this reader is that no external controller are needed. Simply plug the USB cable into your computer, and enjoy registering new fingerprints onto the database, accepting stored fingerprints, and rejecting invalid fingerprints! The sensor shown here is fully compatible with the Arduino IDE, and allows users to use fingerprint recognition over a wide range of applications.

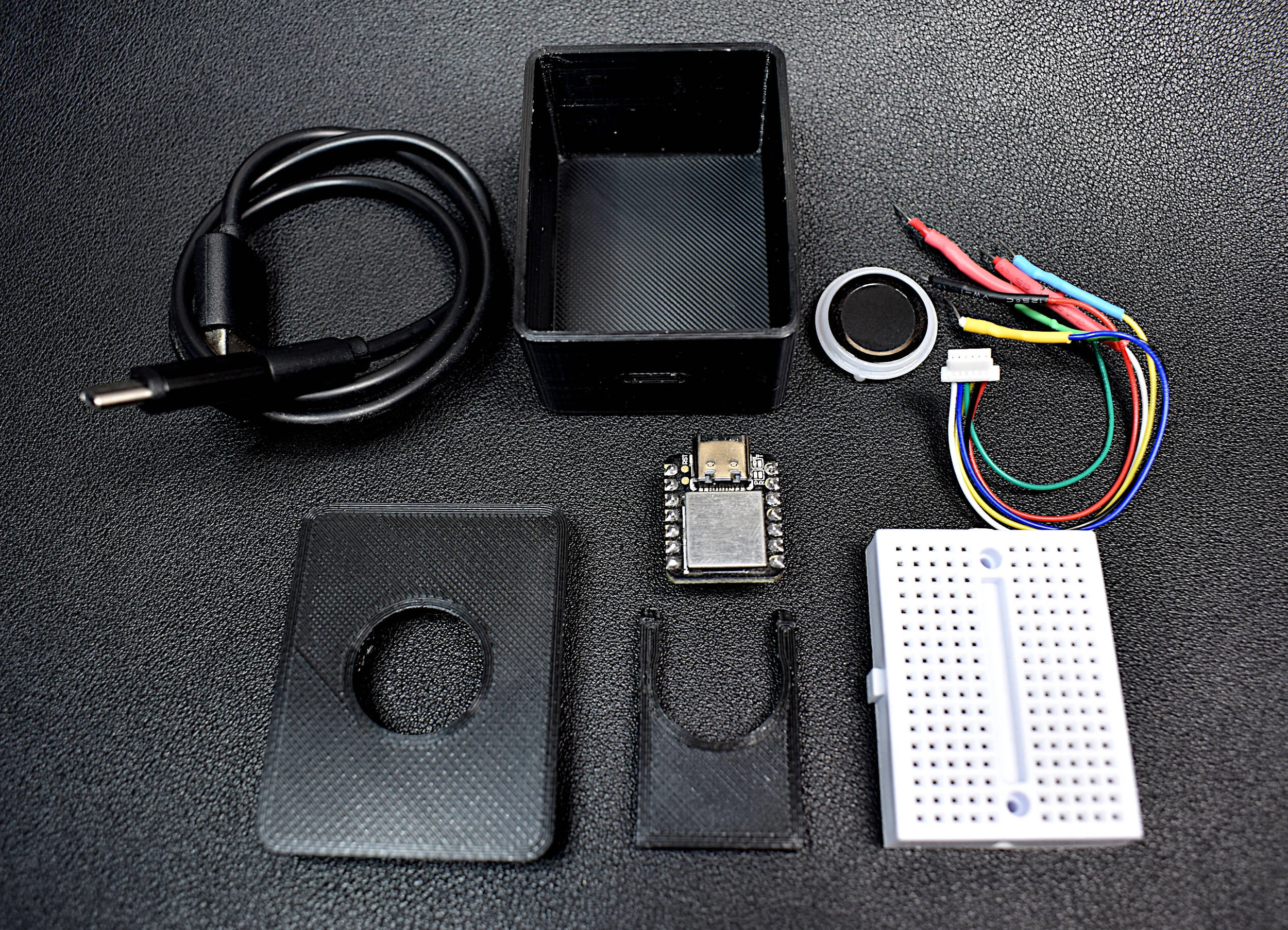

Included in the Capacitive Fingerprint Reader Kit:
1x ID809 Fingerprint Reader
1x SAMD21G18 Microcontroller
1x Mini Breadboard
1x USB Cable
1x 3D Printed Enclosure
Some Features of the Capacitive Fingerprint Reader:
360° fingerprint readability and matching
Stores up to 80 fingerprints
Verification time: ~300-400 ms
Capacitive image resolution: 508 dpi
32bit 48MHz microcontroller (SAMD21G18)
USB-C to Micro USB -> USB 2.0 Cable
Arduino compatible
